MARINE GEAR PUMP

Applications:

This series pump used for foodstuff, drink, medicine, daily chemical, petroleum,marine ,chemical industry, etc.

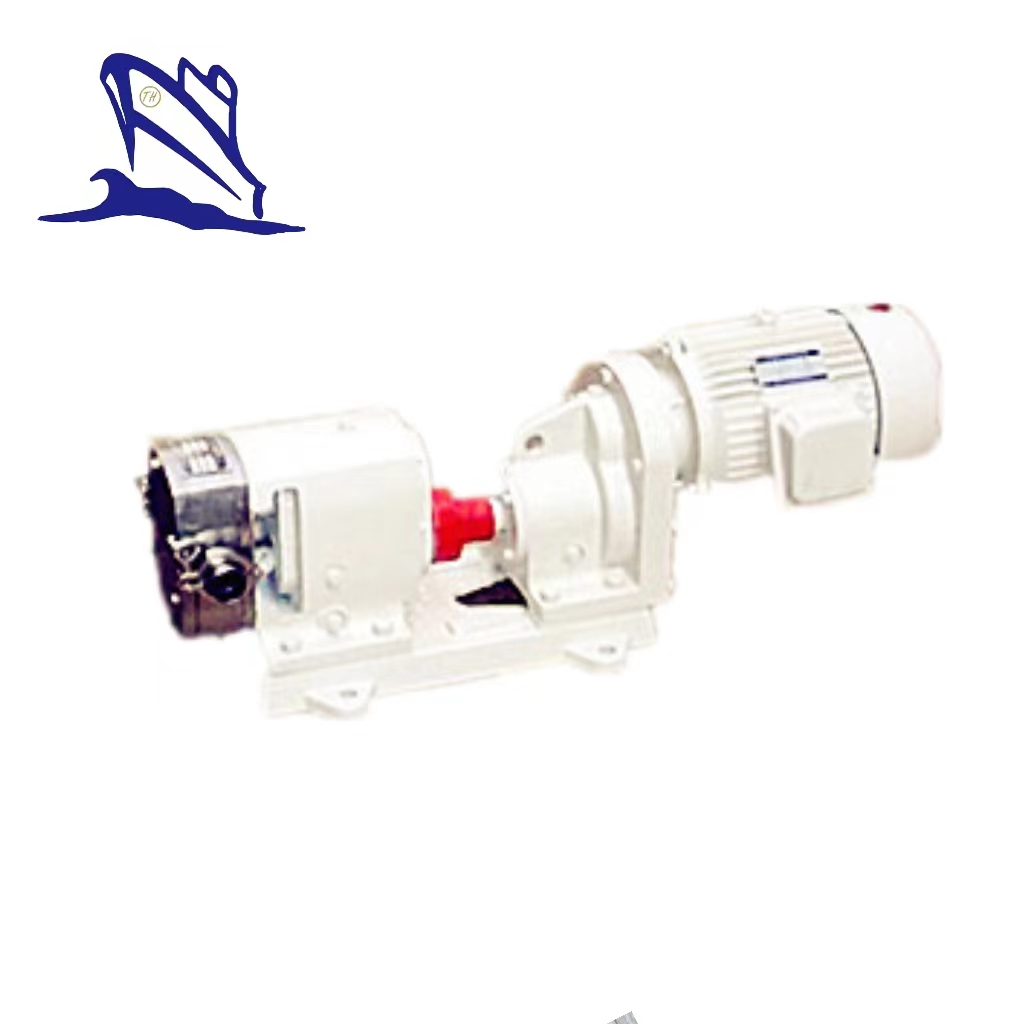

3RP Series Rotary Lobe Pump belongs to positive displacement pump and has the advantages of outstanding self-priming, high efficiency and long life. It applies to delivering suspension liquid with soft solid particles, corrosive medium and suspension liquid. The delivered medium temperature range from -30 centigrade to 180 centigrade and viscosity range from 30cSt to 1.0x105cSt. The parts of contact with medium adopt stainless steel. The rotating speed can be adjusted according to the delivered medium's physical property.

Model Explanation

Performance Parameter

Model	Displacement (L/100r)	Max.Defferential Pressure (Mpa)	Port (mm)	Max.Speed (r/min)	Motor Power (kw)
3RP6/0.6	6	0.6	25	960	1.5
3RP8/0.4	8	0.4	25	960	1.5
3RP12/1.0	12	1.0	25	960	4
3RP21/0.6	21	0.6	40	960	5.5
3RP28/0.4	28	0.4	50	960	4
3RP36/1.0	36	1.0	50	720	11
3RP52/0.6	52	0.6	50	720	11
3RP66/0.4	66	0.4	80	720	7.5
3RP78/1.0	78	1.0	80	720	22
3RP107/0.6	107	0.6	80	720	18.5
3RP156/0.4	156	0.4	100	720	18.5
