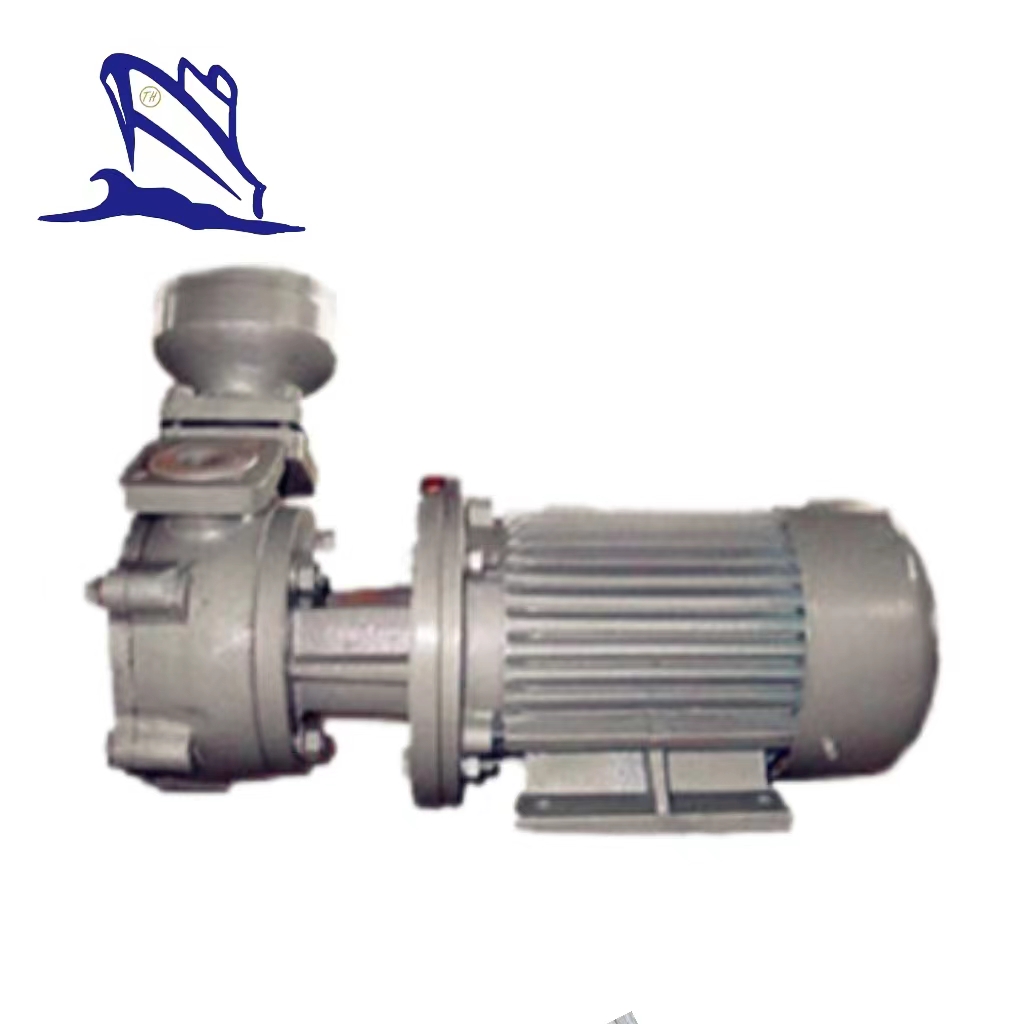

1W(Z) Marine Vortex Pump
Applications:
1W(Z) Series marine self-priming vortex pumps are applicable for pumping potable water, washings and sanitary fresh water and sea water, as well as life pump and cooling pump（T＜85℃).
Model Explanation
for example 1W(Z)-3
1 — Inlet and outlet diameters 1 inch
W(Z) — Marine vortex pump (Self-priming)
3 — Integral number of specific speed divided by10
Main Technical Parameter
| Series Name | 1W(Z) | |||
| Product Name | Marine self-priming vortex pump | |||
| Feature | Simple construction, easy operation, well moving, convenient repairing, etc. | |||
| Model | HS-1W-3 | HS-1WZ-3 | HS-1W-0.9 | HS-1WZ-0.9 |
| Capacity (m3/h) | 3 | 3 | 1.8 | 1.8 |
| Head (m) | 10 | 10 | 25.5 | 25.5 |
| Speed (r/min) | 1450 | 1450 | 1450 | 1450 |
| Motor power (kw) | 0.75 | 0.75 | 1.1/1.5 | 1.1/1.5 |
| Weight (kg) | 26 | 28 | 25.5 | 26.5 |
| Application | Applicable to pumping clear water and light eroding medium | |||
| Medium tempreture | Max.85℃ | |||
| Certification | CCS, BV etc. | |||

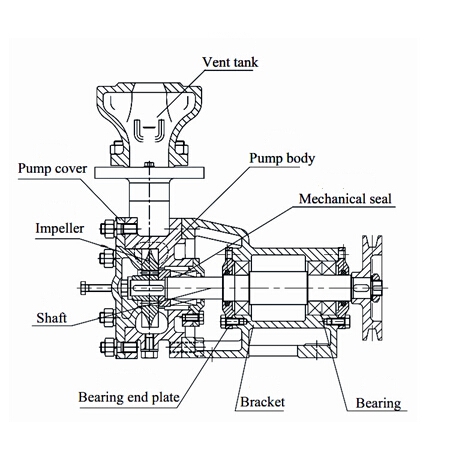

Structure
