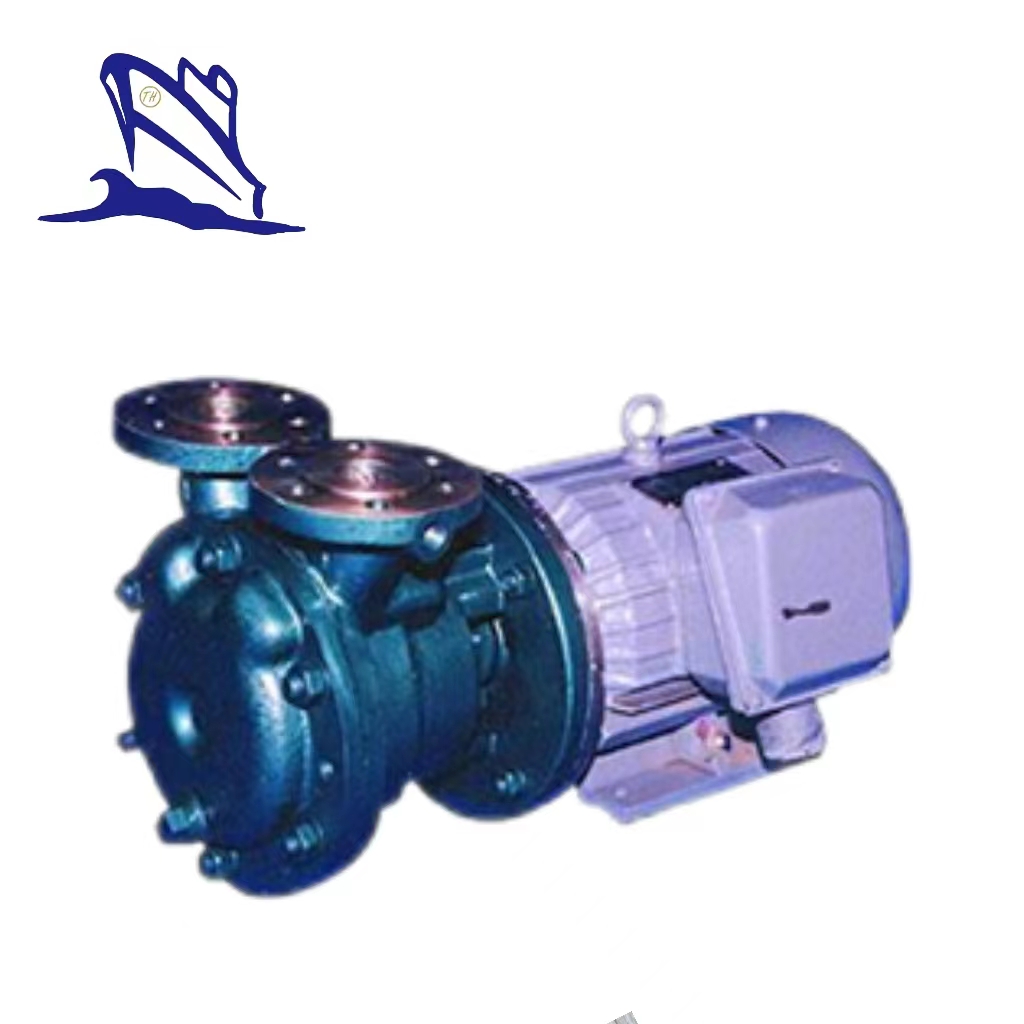

CXZ Marine Self-priming Vortex Pump
Applications:
CXZ type marine self-priming vortex pumps are applicable to pumping fresh and sea water for drinking, washing and sanitary usesin vessels.
The pump rotates clockwise viewed from motor.
◆ Features
1. Beautiful shape and fine structure,reliable performance.
2. Compeitive price.
3. Advanced techniques.
4. Good self-priming performance (does not need additional self-priming device), light weight, etc.
Model Explanation
for the example 20CXZ-30
20 —the pump's head (m)
CXZ —marine-type horizontal self-suction vortex pump
30 — Intergral number of the pump intake diameter
Main Technical Parameter
| Series Name | Marine pump CXZ | |||
| Product Name | Marine self-priming vortex pump | |||
| Feature | Simple construction, easy operation, well moving, convenient repairing, etc. | |||
| Model | HS-20CXZ-15 | HS-32CXZ-25 | HS-32CXZ-40 | HS-40CXZ-30 |
| Capacity (m3/h) | 1 | 3.5 | 3 | 9 |
| Head (m) | 35 | 28 | 40 | 30 |
| Speed (r/min) | 2900/3450 | 2900/3450 | 2900/3450 | 2900/3450 |
| Motor power | 0.75 | 1.5 | 2.2 | 4 |
| Overall weight | 26 | 57 | 57 | 80 |
| Application | Applicable to pumping fresh and sea water for drinking, washing and sanitary uses in vessels | |||
| Medium tempreture | Max.85℃ | |||
| Certification | CCS, BV etc. | |||
Performance Parameter
Type | Capacity | Head | Suction height | Speed | Motor power | Weight |
(m3/h) | (m) | (m) | (r/min) | (kw) | (kg) | |
20CXZ-35 | 1 | 35 | 3 | 2900 | 0.75 | 52 |
32CXZ-25 | 3.5 | 28 | 3 | 2900 | 1.5 | 57 |
32CXZ-40 | 3 | 40 | 4 | 2900 | 2.2 | 57 |
40CXZ-30 | 9 | 30 | 4 | 2900 | 4 | 80 |

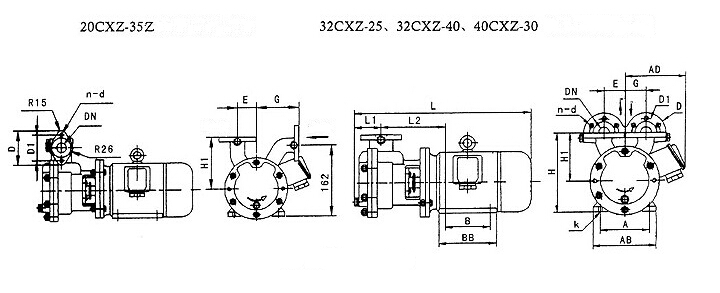

Structure
