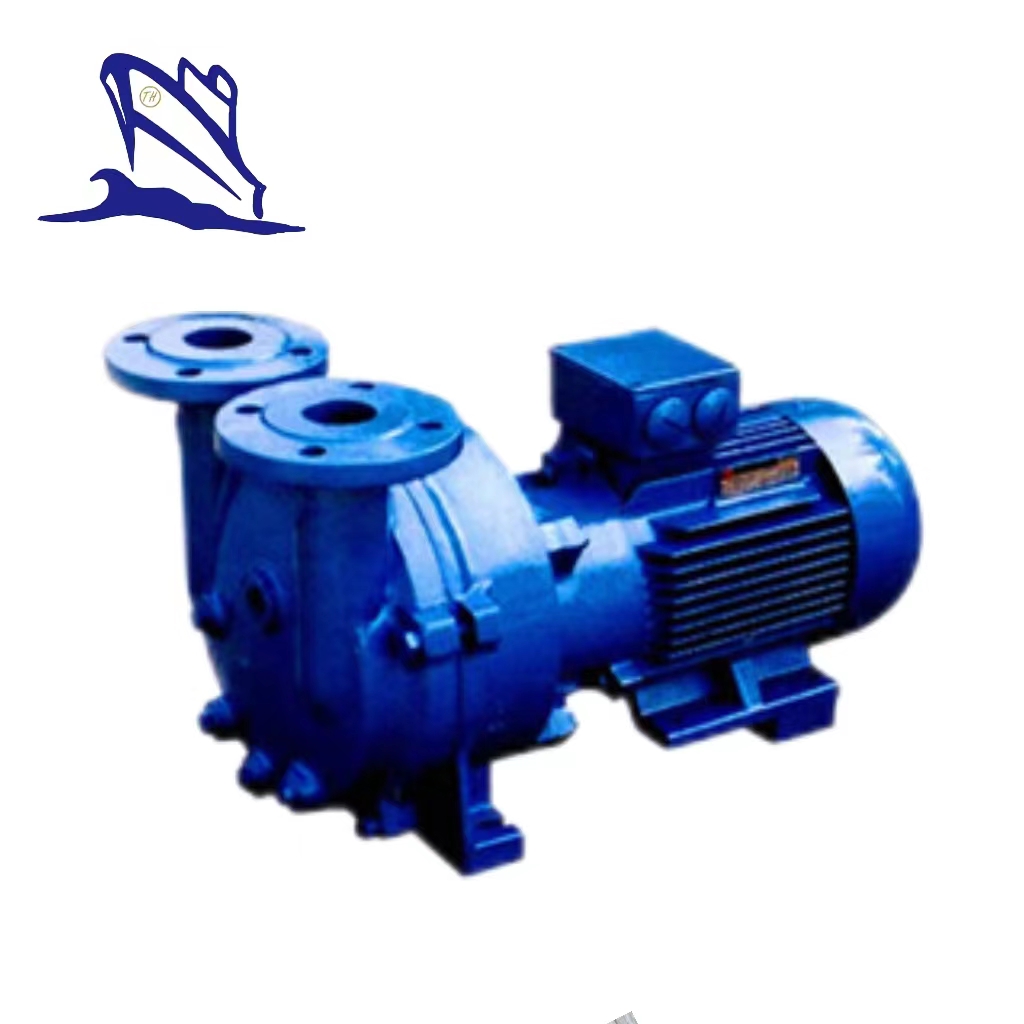

WX Marine Centrifugal Vortex Pump
Applications:
WX type pump is single stage double suction cantilever type centrifugal vortex pump, used for transporting temperature less than 105 degrees, viscosity is not more than 5 degrees, E liquid without solid particles.
Model Explanation
for example 62WX-130
62 - outlet diameter 62mm
WX - centrifugal vortex pump
130 - Said pump Head value in the design point is 30m
Main Technical Parameter
| Series Name | WX | ||
| Product Name | Centrifugal vortex pump | ||
| Model | Marine pump HS-65WX-130 | Marine pump HS-65WX-140 | Marine pump HS-365WX-150 |
| Capacity (m3/h) | 6.3/9/11.25 | 10.8/14.4/18 | 17.25/21.6/27 |
| Head (m) | 173/130/88 | 186/140/94 | 200/150/95 |
| Speed (r/min) | 2900/3450 | 2900/3450 | 2900/3450 |
| Motor power | 15 | 22 | 30 |
| Overall weight | 70/217 | 70/359 | 70/390 |
| Application | Applicable to transport liquid, the temperature is not higher than 150℃ and thickness is not more than 5°E , no causticity, and no solid granule | ||
| Medium tempreture | Max.150℃ | ||
| Certification | CCS, BV etc. | ||

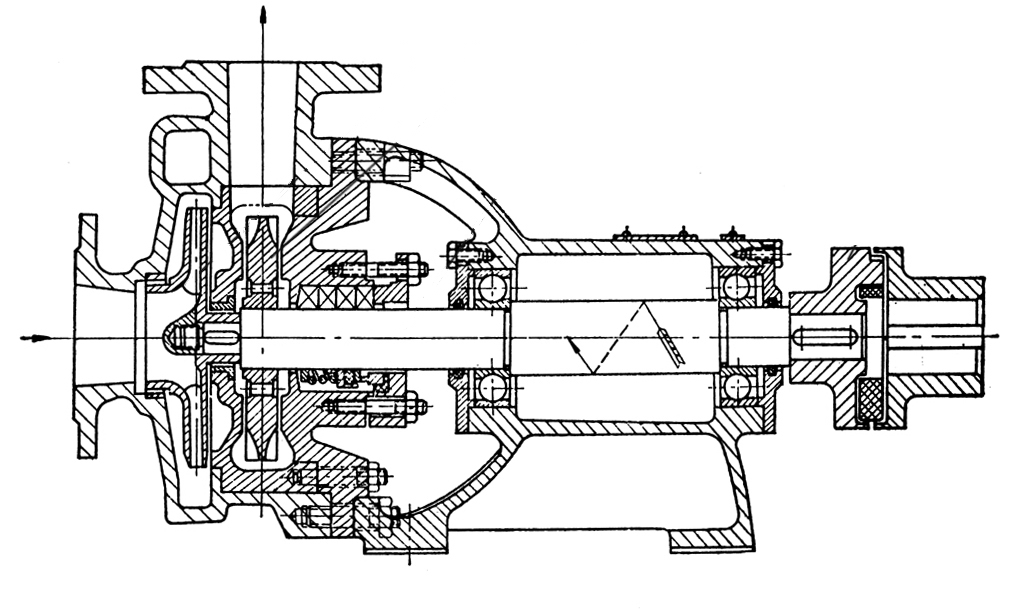

Structure
