MARINE CENTRIFUGAL PUMP

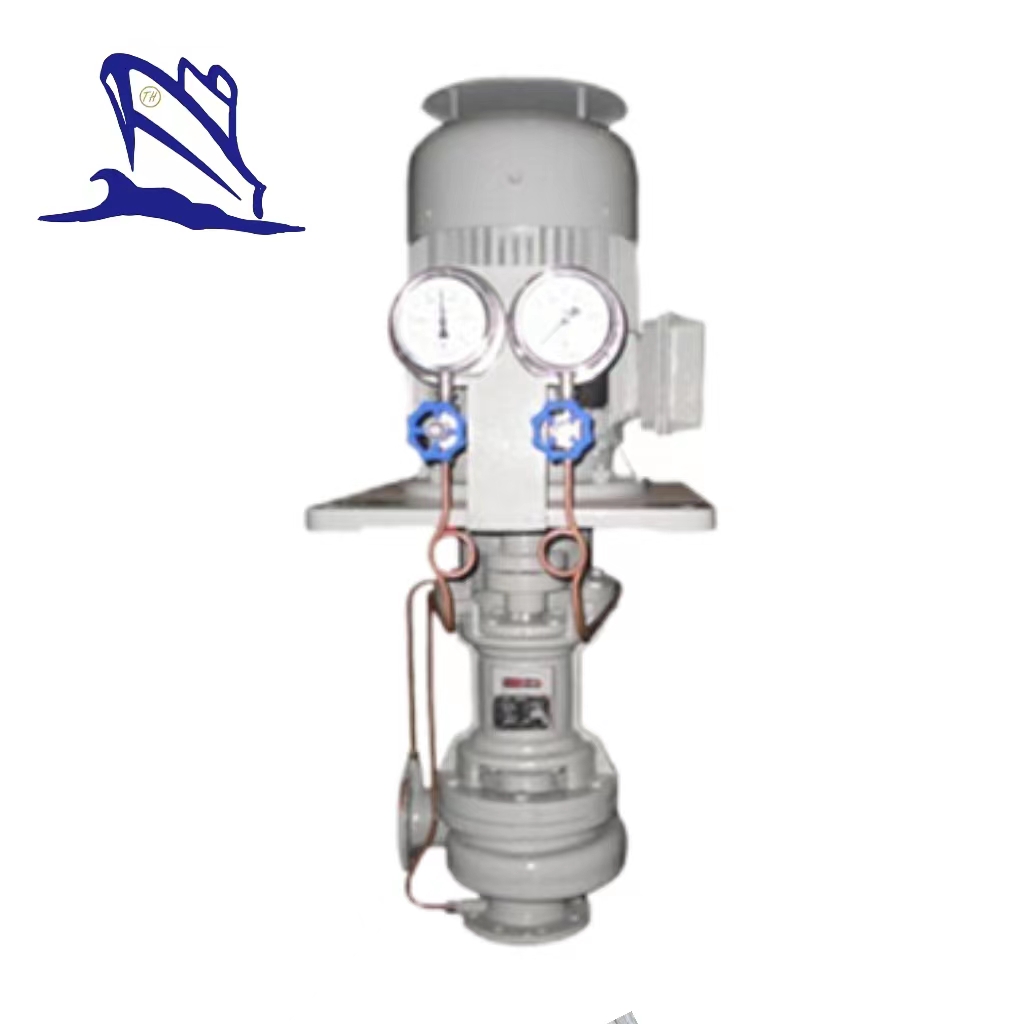

CL Marine Centrifugal Pump

Applications:

CL Series marine vertical centrifugal pumps are used at cabin bottom to cool water and fight fire.It is able to carry sea water under 80 degrees. Fresh water and other nonerroding liquid.

The pump rotates anticlockwise viewed from the top of motor.

Main Technical Parameter

Series Name	CL
Product Name	Vertical centrifugal pump
Product Model	HS-CL01
Features	Vertical, simple construction,easy oporation
Capacity	3.6-240 m3/h
Head	21.5-85 m
Speed	2900 r/min
Motor power	1.1-37 kw
Application	Be used at cabin bottom to cool water and fight fire, capable to carry fresh water and other nonerroding liquid
Tempreture	Max.80℃
Certification	CCS, BV

Performance Parameter

1.Performance parameters when power frequency is 50Hz
Type	(50Hz 3φ 380V) Main technical parameter					Motor type & power (kW)	Weight (Kg)
Type	Capacity (m3/h)	Head (m)	Speed (r/min)	NPSHr (m)	Shaft power (kW)	Motor type & power (kW)	Weight (Kg)
25CL-30	3.6	30	2950	3	0.74	Y802-2H 1.1	60
50CL-30	20	30	2950	3	2.79	Y112M-2H 4	95
50CL-30A	18	24.5	2950	3	2.11	Y100L-2H 3	84
65CL-45	30	45	2950	3	5.66	Y132S2-2H 7.5	131
65CL-45A	27	37	2950	3	4.32	Y132S1-2H 5.5	126
65CL-65	25	65	2950	5	10.56	Y160M2-2H 15	189
80CL-30	50	30	2950	3.5	5.75	Y132S2-2H 7.5	133
80CL-30A	45.5	25	2950	3.5	4.48	Y132S1-2H 5.5	128
80CL-35	50	35	2950	5	6.8	Y132S2-2H 7.5	135
80CL-65	50	65	2950	4.5	13.63	Y160L-2H 18.5	272
80CL-65A	46.5	56	2950	4.5	11.06	Y160M2-2H 15	251
80CL-65B	44	50	2950	4.5	9.5	Y160M2-2H 15	242
100CL-30	100	30	2950	4.5	10.35	Y160M2-2H 15	229
100CL-30A	90	24.5	2950	4.5	7.8	Y160M1-2H 11	221
100CL-45	100	45	2950	4	16.8	Y180M-2H 22	276
100CL-45A	90	36.5	2950	4	12.6	Y160M2-2H 15	234
100CL-85	100	85	2950	4.5	34.6	Y225M-2H 45	553
100CL-85A	92.5	73	2950	4.5	27.8	Y200L2-2H 37	483
100CL-85B	87	64	2950	4.5	23.4	Y200L1-2H 30	473
125CL-30	162	30	2950	4.5	17	Y180M-2H 22	278
125CL-30A	148	25	2950	4.5	13.3	Y160L-2H 18.5	257
125CL-50	200	50	2950	4	34.9	Y225M-2H 45	490
150CL-30	162	30	2950	4.5	17	Y180M-2H 22	281
150CL-30A	148	25	2950	4.5	13.3	Y160L-2H 18.5	259
200CL-30	300	30	1450	4	30.6	Y225S-4H 37	530
200CL-30A	262	23.5	1450	4	21.2	Y200L-4H 30	521
200CL-30B	240	21.5	1450	4.5	17.5	Y180L-4H 22	426
2.Performance parameters when power frequency is 60Hz
Type	(60Hz 3φ 440V) Main technical parameter					Motor type & power (kW)	Weight (Kg)
Type	Capacity (m3/h )	Head (m)	Speed (r/min)	NPSHr (m)	Shaft power (kW)	Motor type & power (kW)	Weight (Kg)
25CL1-30	4.2	42	3500	3.5	1.2	Y90L-2H 2.2	68
50CL1-30	24	42	3500	3.5	4.43	Y132S1-2H 5.5	116
50CL1-30A	21	34	3500	3.5	3.19	Y112M-2H 4	95
65CL1-45	35	63	3500	3.5	8.96	Y160M1-2H 11	176
65CL1-45A	32	50	3500	3.5	6.7	Y132S2-2H 7.5	131
65CL1-65	30	90	3500	5	16.7	Y180M-2H 22	223
80CL1-30	60	42	3500	4.5	9.53	Y160M1-2H 11	178
80CL1-30A	54	35	3500	4.5	7.35	Y160M1-2H 11	178
80CL1-35	60	49	3500	5	11.3	Y160M2-2H 15	188
80CL1-65	60	90	3500	5	22.6	Y200L1-2H 30	379
80CL1-65A	55	78	3500	5	18.3	Y180M-2H 22	285
80CL1-65B	52	70	3500	5	15.7	Y160L-2H 18.5	263
100CL1-30	120	42	3500	5	17.4	Y180M-2H 22	263
100CL1-30A	105	34	3500	5	12.6	Y160M2-2H 15	229
100CL1-45	120	63	3500	4.5	28.2	Y200L2-2H 37	378
100CL1-45A	105	50	3500	4.5	20.1	Y200L1-2H 30	362
100CL1-85	120	118	3500	5	57.6	Y280S-2H 75	753
100CL1-85A	120	100	3500	5	49.5	Y250M-2H 55	651
100CL1-85B	100	90	3500	5	37.7	Y225M-2H 45	551
125CL1-30	190	42	3500	5	27.9	Y200L2-2H 37	380
125CL1-30A	175	35	3500	5	21.9	Y200L1-2H 30	364
125CL1-50	240	70	3500	4.5	58.7	Y280S-2H 75	690
150CL1-30	190	42	3500	5	27.9	Y200L2-2H 37	383
150CL1-30A	175	35	3500	5	21.9	Y200L1-2H 30	366
200CL1-30	360	42	1750	5	51.5	Y280S-4H 75	800
200CL1-30A	310	34	1750	5	36.3	Y225M-4H 45	599
200CL1-30B	285	30	1750	5	30.6	528	528
