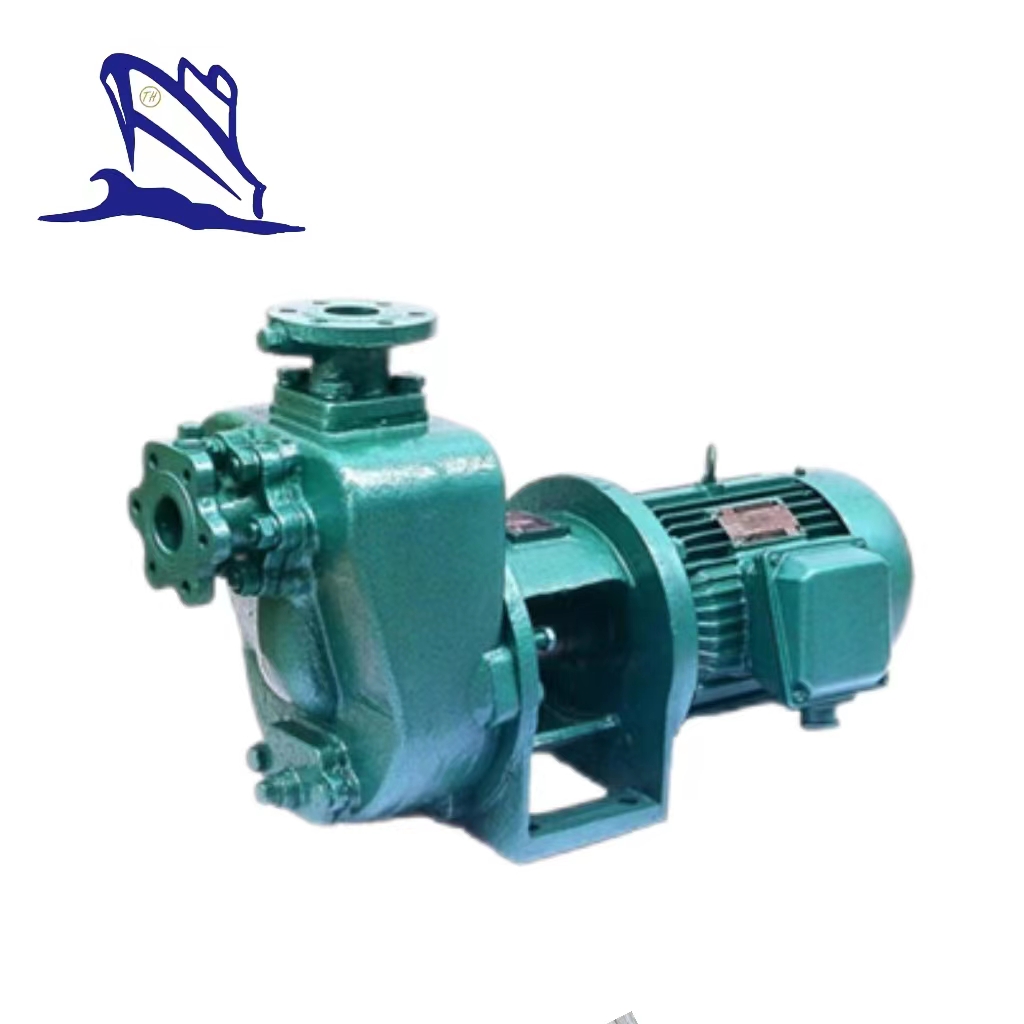

CBZ Marine Horizontal Self-priming Centrifugal Pump
Applications:
CBZ Series Marine Horizontal Self-priming Centrifugal Pump is used at cabin bottom to cool water and fight fire. It is able to carry sea water under 80 degrees. Fresh water and other non eroding liquid.
The pump rotates anticlockwise viewed from motor.
Main Technical Parameter
| Parameters in case of power supply frequency of 50Hz | ||||||||
Type | (50Hz3φ380V) Main technical parameter | Motor type & power (kW) | Remarks | |||||
Capacity (m3/h) | Head (m) | Speed (r/min) | NPSHr (m) | Shaft power (kW) | ||||
| 32CBZ-5 | 8 | 20 | 2900 | 3.3 | 1.1 | Y90S-2H1.5 | ||
| 32CBZ-4 | 8 | 30 | 2900 | 3.3 | 1.56 | Y90L-2H2.2 | ||
| 32CBZ-3 | 8 | 40 | 2900 | 3.3 | 2.56 | Y112M-2H4 | ||
| 40CBZ-6 | 12 | 20 | 2900 | 3.6 | 1.4 | Y90L-2H2.2 | ||
| 40CBZ-5 | 12 | 30 | 2900 | 3.6 | 2.1 | Y100L-2H3 | ||
| 40CBZ-4 | 12 | 40 | 2900 | 3.6 | 2.85 | Y112M-2H4 | ||
| 40CBZ-4A | 10 | 37 | 2900 | 3.6 | 2.2 | Y100L-2H3 | ||
| 50CBZ-8 | 21 | 20 | 2900 | 3.6 | 2.1 | Y100L-2H3 | ||
| 50CBZ-6 | 21 | 30 | 2900 | 3.6 | 3.1 | Y112M-2H 4 | ||
| 50CBZ-5 | 21 | 40 | 2900 | 3.6 | 4.5 | Y132S1-2H 5.5 | ||
| 65CBZ-11 | 35 | 20 | 2900 | 3.6 | 3.15 | Y112M-2H4 | ||
| 65CBZ-8 | 35 | 30 | 2900 | 3.6 | 4.5 | Y132S1-2H 5.5 | ||
| 65CBZ-6 | 35 | 40 | 2900 | 3.6 | 6.7 | Y160M1-2H 11 | ||
| 65CBZ-6A | 30 | 37 | 2900 | 3.6 | 5.4 | Y132S2-2H 7.5 | ||
| 65CBZ-5 | 35 | 60 | 2900 | 4 | 10.1 | Y160M2-2H 15 | ||
| 65CBZ-5A | 30 | 50 | 2900 | 4 | 7.3 | Y160M1-2H 11 | ||
| 80CBZ-14 | 60 | 20 | 2900 | 4 | 5.2 | Y132S2-2H 7.5 | ||
| 80CBZ-11 | 60 | 30 | 2900 | 4 | 8.8 | Y160M1-2H 11 | ||
| 80CBZ-8 | 60 | 40 | 2900 | 4.5 | 11.1 | Y160M2-2H 15 | ||
| 80CBZ-8A | 50 | 35 | 2900 | 4.5 | 8.2 | Y160M1-2H 11 | ||
| 80CBZ-6A | 50 | 55 | 2900 | 5 | 13.6 | Y160L-2H 18.5 | ||
| 100CBZ-18 | 100 | 20 | 2900 | 5 | 8.5 | Y160M1-2H 11 | ||
| 100CBZ-14 | 100 | 30 | 2900 | 5 | 11.9 | Y160M2-2H 15 | ||
| 100CBZ-14A | 90 | 25 | 2900 | 5 | 9.3 | Y160M1-2H 11 | ||
| Parameters in case of power supply frequency of 60Hz | ||||||||
Type | (50Hz3φ380V) Main technical parameter | Motor type & power (kW) | Remarks | |||||
Capacity (m3/h) | Head (m) | Speed (r/min) | NPSHr (m) | Shaft power (kW) | ||||
| 32CBZ1-5 | 9.5 | 29 | 3500 | 4 | 1.88 | Y90L-2H2.2 | ||
| 32CBZ1-4 | 9.5 | 43.5 | 3500 | 4 | 2.68 | Y100L-2H3 | ||
| 32CBZ1-3 | 9.5 | 58 | 3500 | 4 | 4.41 | Y132S1-2H 5.5 | ||
| 40CBZ1-6 | 14.5 | 29 | 3500 | 4.2 | 2.44 | Y100L-2H3 | ||
| 40CBZ1-5 | 14.5 | 43.5 | 3500 | 4.2 | 3.58 | Y112M-2H4 | ||
| 40CBZ1-4 | 14.5 | 58 | 3500 | 4.2 | 4.98 | Y132S1-2H 5.5 | ||
| 40CBZ1-4A | 12 | 54 | 3500 | 4.2 | 3.84 | Y132S1-2H 5.5 | ||
| 50CBZ1-8 | 25 | 29 | 3500 | 4.2 | 3.59 | Y112M-2H4 | ||
| 50CBZ1-6 | 25 | 43.5 | 3500 | 4.2 | 5.38 | Y132S2-2H 7.5 | ||
| 50CBZ1-5 | 25 | 58 | 3500 | 4.2 | 7.74 | Y160M1-2H 11 | ||
| 65CBZ1-11 | 42 | 29 | 3500 | 4.2 | 5.44 | Y132S2-2H 7.5 | ||
| 65CBZ1-8 | 42 | 43.5 | 3500 | 4.2 | 7.77 | Y160M1-2H 11 | ||
| 65CBZ1-6 | 42 | 58 | 3500 | 4.2 | 11.6 | Y160M2-2H 15 | ||
| 65CBZ1-6A | 36 | 53.5 | 3500 | 4.2 | 9.37 | Y160M1-2H 11 | ||
| 65CBZ1-5A | 36 | 72.5 | 3500 | 4.5 | 12.7 | Y160M2-2H 15 | ||
| 80CBZ1-14 | 72 | 29 | 3500 | 4.5 | 9.03 | Y160M1-2H 11 | ||
