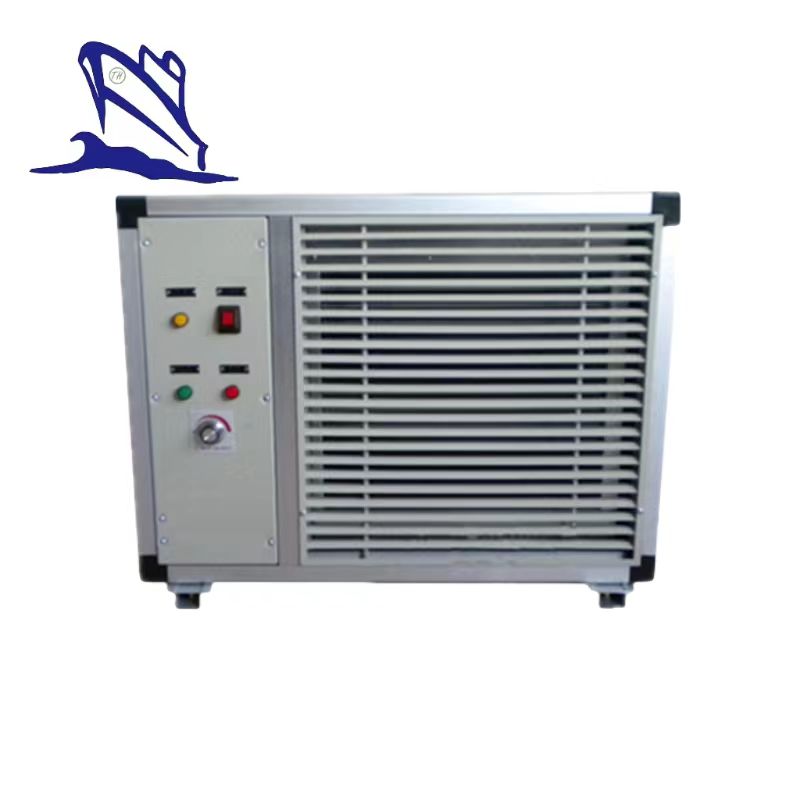

CWR Marine Steam Fan Heater
Introduction :
CWR Marine Steam Fan Heater adopts air conditioning design, base installation, beautiful appearance generous, with fault indicator light and wind speed adjustable device, is rising quickly, fast heat dissipation, high fire rating characteristics, general 0.3 MPa saturated steam, heating medium or 60-90 ℃ hot water, must enable the equipment to make the cabin temperature maintained at the required temperature, equipment and piping of the guarantee hold not freezing, for the ship line.Can also be customized production according to customer's specific requirements.
Performance Parameter :
Products model | Voltage V | Frequency Hz | Motor Power Hz | Air volume m3/h | Steam pressure MPa | Heat release Kcal/h | Condensation water Kg/h | A1 （mm） | A2 （mm） | B1 （mm） | B2 （mm） |
| CWR-5 | 220/380 | 50/60 | 130 | 1300 | ≤0.4 | 4300 | 7.5 | 650 | 450 | 320 | 160 |
| CWR-15 | 220/380 | 50/60 | 180 | 2500 | ≤0.4 | 15120 | 22.5 | 750 | 500 | 420 | 260 |
| CWR-20 | 220/380 | 50/60 | 250 | 3000 | ≤0.4 | 21150 | 30 | 850 | 550 | 420 | 260 |
Access tube DN | Protection grade | Noise |
| 20 | IP44 | 55 |
| 25 | IP44 | 65 |
| 32 | IP44 | 70 |
