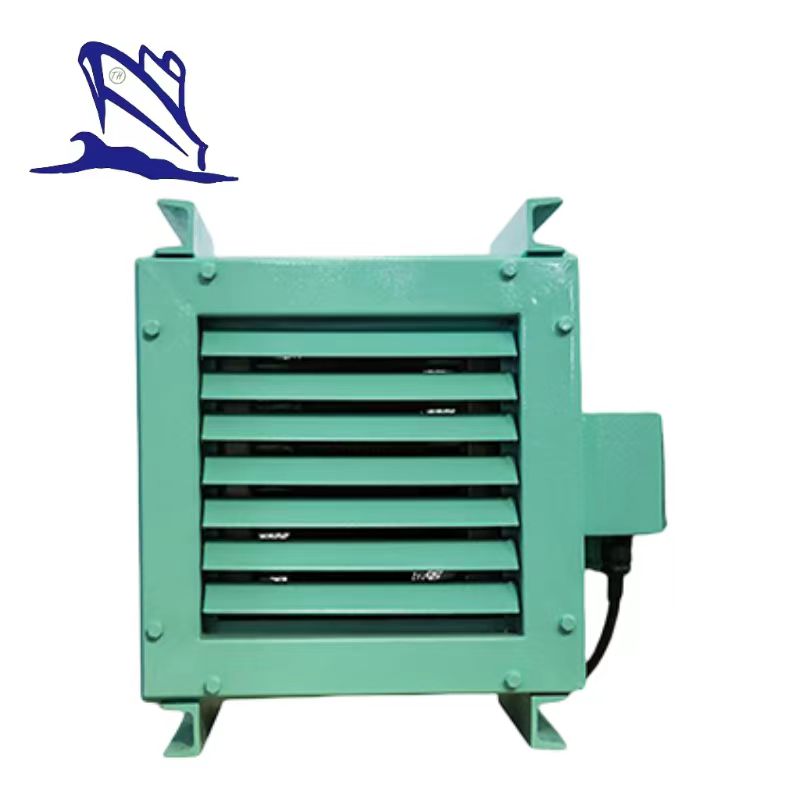

CNF(D) Marine Electric Heating Fan Heater
Structure
The CNF (D) electric heating series heater consists of an electric heater, an impeller, a collecting ring, a motor, and an electric control box. The electric heating tube of the electric heater is wound around the stainless steel tube by mechanical winding. The impeller adopts LF3 anti-rust aluminum; the casing and the electric control box are welded by ordinary steel plate or stainless steel plate. According to the needs of the user, the electric control box can be assembled with the heater body or separately. The electric heating heater has over-temperature protection, overload protection, temperature control, interlock control of fan and electric heating heater, and hierarchical control electric heating function.
MODEL | CNF（D）-1.0-3.0 |
Heating capacity （kw） | 1.0-3.0 |
Flow rate（m3/h） | 500 |
Blower power | 40 |
Rating | 220 V |
Model | Heating capacity（KW ) | Flow rate m3/h | Motor | Weight（kg） | |||||||||
Power KW | Model | A | B | B1 | B2 | L | L1 | L2 | L3 | ||||
CNF(D)-3～6 | 3～6 | 500～1000 | 0.25 | Y711-4-H | 420 | 420 | 600 | 500 | 500 | 330 | 250 | 200 | 48 |
CNF(D)-7～14 | 7～14 | 1200～ 2000 | 0.25 | Y711-4-H | 550 | 550 | 700 | 600 | 500 | 380 | 300 | 250 | 62 |
CNF(D)-15～22 | 15～22 | 2500～ 3500 | 0.37 | Y712-4-H | 650 | 650 | 800 | 700 | 500 | 380 | 300 | 250 | 82 |
CNF(D)-22～30 | 22～30 | 3500～ 5000 | 0.75 | Y802-4-H | 750 | 750 | 900 | 800 | 600 | 380 | 300 | 250 | 98 |
