MARINE LEVEL GAUGE

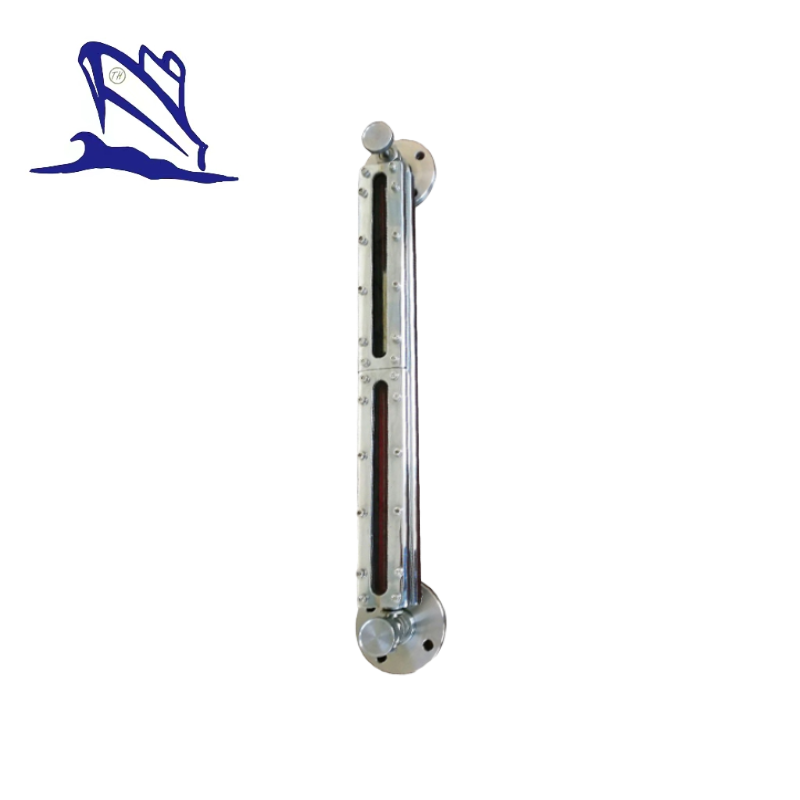

ULB 3 flat type glass level gauge it can be used to measure and control level of the tank in ship and other industrial instrument. It applies to measure height for medium.

Technical Specification:

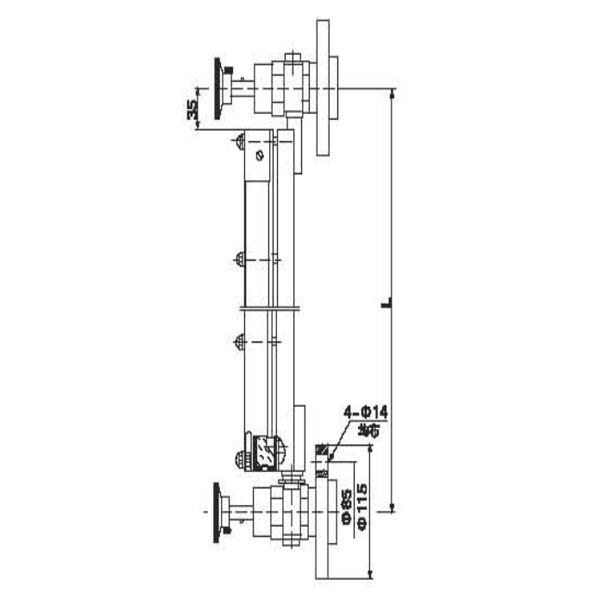

• Length: 360-4710mm
• Nominal Prassure: 0.2Mpa
• Test Temperature: 0.5Mpa
• Medium: Water or Oil flash point higher then 60℃
• Conection Type: Flange type or Welding nut type
• Body Material: Carbon steel or Stainless steel ; Glass plate: Boron silicon glass; Valve: Copper alloy

Note: Valve is optional part.
