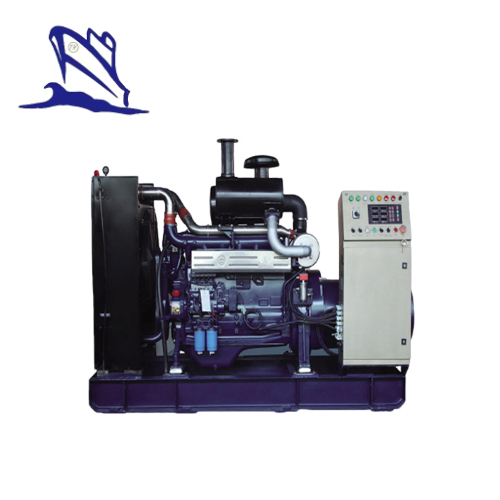

Marine Weichai Diesel Generator Set
Marine Weichai Diesel Generator Set
Features:
1. Engine brand: Weichai
2. Alternator brand: Marathon (Stamford, Sunvim, Siemens for option)
3. Application: used to provide electric power and propulsion force for ships
4. Electric starting or air starting
5. Rated speed: 1500RPM
6. Power range: 24KW～300KW
7. Frequency/Voltage: 50Hz/400V
8. Certificates approved: CCS, ABS, BV, DNV, LRS, etc.
Advantages:
1. High efficient system
2. Low fuel consumption
3. Strong driving force
4. Compact structure
5. Long service life
6. Reliability and stability
7. Simple maintenance
Weichai Diesel Genset Technical Data | |||||||
Genset Model | Prime power | Rated Voltage | Output frequency | Rated speed | Engine model | Alternator model | |
Marathon | Stamford | ||||||
CCFJ24JW | 24KW | 400V | 50Hz | 1500RPM | D226B-3CD | MP-H-24-4 | PM144H |
CCFJ30JW | 30 KW | 400V | 50Hz | 1500RPM | TD226B-3CD | MP-H-30-4 | PM144K |
CCFJ50JW | 50 KW | 400V | 50Hz | 1500RPM | WP4CD66E200 | MP-H-50-4 | UCM224F |
CCFJ75JW | 75 KW | 400V | 50Hz | 1500RPM | WP4CD100E200 | MP-H-64-4 | UCM274D |
CCFJ100JW | 100 KW | 400V | 50Hz | 1500RPM | WP6CD132E200 | MP-H-75-4 | UCM274E |
CCFJ120JW | 120 KW | 400V | 50Hz | 1500RPM | WP6CD152E200 | MP-H-90-4 | UCM274G |
CCFJ150JW | 150 KW | 400V | 50Hz | 1500RPM | WP10CD200E200 | MP-H-100-4 | UCM274J |
CCFJ180JW | 180 KW | 400V | 50Hz | 1500RPM | WP10CD238E200 | MP-H-180-4 | UCM274K |
CCFJ200JW | 200 KW | 400V | 50Hz | 1500RPM | WP10CD264E200 | MP-H-200-4 | HCM434D |
CCFJ250JW | 250 KW | 400V | 50Hz | 1500RPM | WP12CD317E200 | MP-H-250-4 | HCM434E |
CCFJ300JW | 300 KW | 400V | 50Hz | 1500RPM | WP13CD385E200 | MP-H-300-4 | HCM534C |
