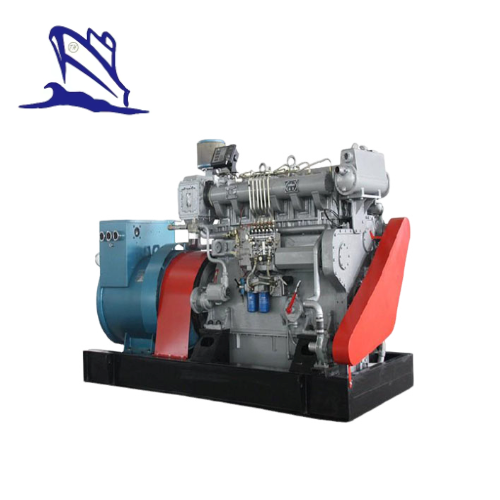

Marine Zichai Genset
Marine Zichai Genset
Features:
1. Engine brand: Zibo engine
2. Alternator brand: Marathon alternator
3. Application: used to provide electric power and propulsive force for vessels
4. Electric starting or air starting
5. Certificates approved: CCS, ABS, DNV, BV, RS, EIAPP, etc.
Advantages:
1. Stability and reliability
2. High combustion efficiency
3. Simple maintenance and low cost
4. Long service life
5. Strong driving force
Zichai Genest Technical Data | ||||||||
Model | Prime power | Standby power | Rated speed | Output frequency | Rated voltage | Phase | Engine model | Alternator Model |
CCFJ200JZ | 200KW | 220KW | 1500RPM | 50Hz | 400V | 3 | Z6150ZLD-5 | MP-H-200-4 |
CCFJ250JZ | 250 KW | 275KW | 1500RPM | 50Hz | 400V | 3 | Z6150ZLD-13 | MP-H-250-4 |
CCFJ300JZ | 300 KW | 330KW | 1500RPM | 50Hz | 400V | 3 | Z6150ZLD-15 | MP-H-300-4 |
CCFJ200JZ | 200 KW | 220KW | 1500RPM | 50Hz | 400V | 3 | Z6170ZLD-2 | MP-H-200-4 |
CCFJ250JZ | 250 KW | 275KW | 1500RPM | 50Hz | 400V | 3 | Z6170ZLD-1 | MP-H-250-4 |
CCFJ300JZ | 300 KW | 330KW | 1500RPM | 50Hz | 400V | 3 | Z6170ZLD-3 | MP-H-250-4 |
CCFJ350JZ | 350 KW | 385KW | 1500RPM | 50Hz | 400V | 3 | Z8170ZLD-2 | MP-H-350-4 |
CCFJ400JZ | 400 KW | 440KW | 1500RPM | 50Hz | 400V | 3 | Z8170ZLD-3 | MP-H-400-4 |
CCFJ480JZ | 480 KW | 528KW | 1500RPM | 50Hz | 400V | 3 | Z8170ZLD-6 | MP-H-480-4 |
CCFJ500JZ | 500 KW | 550KW | 1500RPM | 50Hz | 400V | 3 | Z8170ZLD-6 | MP-H-500-4 |
