CWZ Marine Small-size Axial Flow Fan
General
Marine small sized axial fans are suitable for ventilation of kitchen, lavatory, bulkhead, the public place and meeting room etc on the naval and merchant ships.
Features
The fans have low noise,small size,light weight and stable performance etc.The fans also have the features of good anticorrosion,anti-swing,vibration resistance,shock resistance,stable running,safety and reliability.It can be used with 380v/220v,50hz or 440v/220v,60hz.

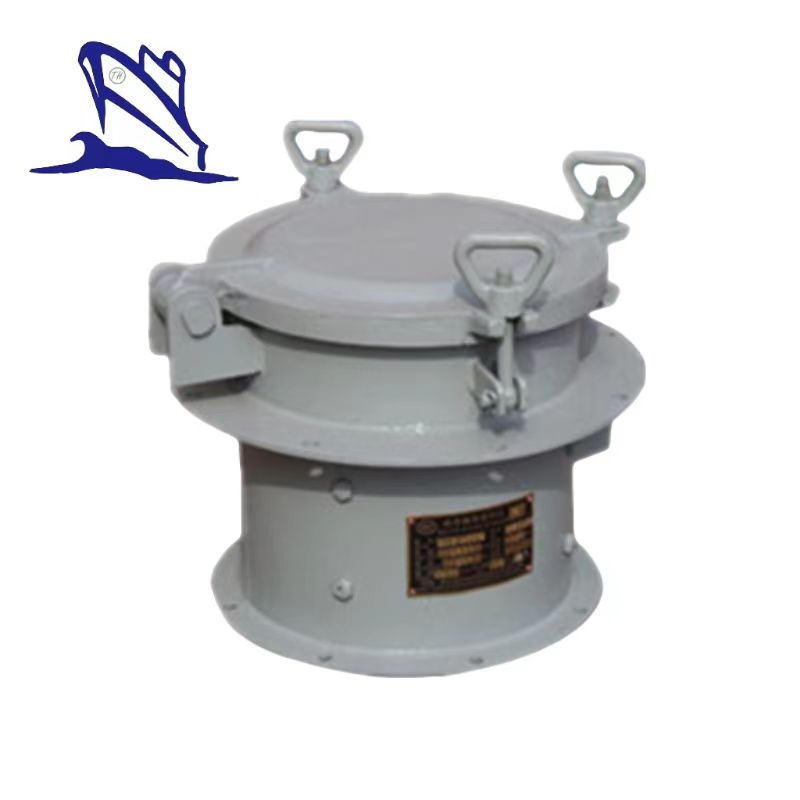

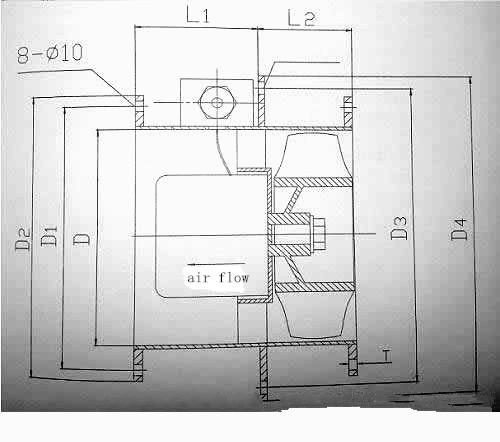

The fans can be made into two structure types, type I (tube type), type II (porthole type). Type I is for ventilation of short tubes or fixed on the bulkhead.Type II is fixed on pothole or bulkhead.Since it is water-proof and can be easily opened or closed to keep rain or sea water out. Impeller is made of aluminium alloy, housing is welded by steel sheet.
Performance Parameter
| Model | Flow rate(m3/h) | Total pressure(Pa) | Speed (r/min) | Frequency(Hz) | Motor power(Kw) | Weight(Kg) |
| HSCWZ-200D | 450 | 35 | 1400 | 50 | 0.04 | 14.3 |
| 550 | 50 | 1700 | 60 | |||
| HSCWZ-200G | 920 | 140 | 2800 | 50 | 0.06 | 15.8 |
| 1120 | 200 | 3400 | 60 | |||
| HSCWZ-224D | 650 | 40 | 1400 | 50 | 0.04 | 15.8 |
| 790 | 60 | 1700 | 60 | |||
| HSCWZ-224G | 1310 | 160 | 2800 | 50 | 0.12 | 16.4 |
| 1590 | 240 | 3400 | 60 | |||
| HSCWZ-250D | 910 | 50 | 1400 | 50 | 0.04 | 16.2 |
| 1100 | 75 | 1700 | 60 | |||
| HSCWZ-250G | 1810 | 200 | 2800 | 50 | 0.25 | 17.2 |
| 2210 | 300 | 3400 | 60 | |||
| HSCWZ-280 | 1280 | 65 | 1400 | 50 | 0.09 | 20 |
| 1550 | 95 | 1700 | 60 |
