MARINE DIESEL GENERATOR

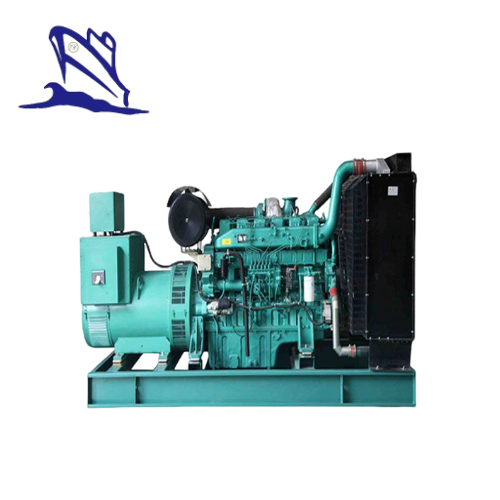

Marine Yuchai Diesel Generator Set

Marine Yuchai Diesel Generator Set

Features:

1. Engine brand: Yuchai

2. Alternator brand: Marathon

3. Application: used as conventional power supplies or emergency power supplies for vessels

4. Electric starting or air starting

5. Certificates approved: CCS, ABS, BV, DNV, LRS, etc.

Advantages:

1. Stability and reliability

2. High combustion efficiency

3. Strong driving force

4. Compact structure

5. Long service life

6. Simple maintenance and low cost

Yuchai Series Genest Technical Data
Genest Model	Rated power	Output frequency	Rated speed	Rated voltage	Engine model	Alternator model
CCFJ30JY	30KW	50Hz	1500RPM	400V	YC4108CA	MP-H-30-4
CCFJ50JY	50KW	50Hz	1500RPM	400V	YC6105CA1	MP-H-50-4
CCFJ75JY	75KW	50Hz	1500RPM	400V	YC6108CA1	MP-H-75-4
CCFJ90JY	90KW	50Hz	1500RPM	400V	YC6108ZCA	MP-H-90-4
CCFJ100JY	100KW	50Hz	1500RPM	400V	YC6B150C	MP-H-100-4
CCFJ200JY	200KW	50Hz	1500RPM	400V	YC6M300C	MP-H-200-4
CCFJ220JY	220KW	50Hz	1500RPM	400V	YC6MK330C	MP-H-250-4
CCFJ250JY	250KW	50Hz	1500RPM	400V	YC6T375C	MP-H-250-4
