MARINE FAN

Introduction :

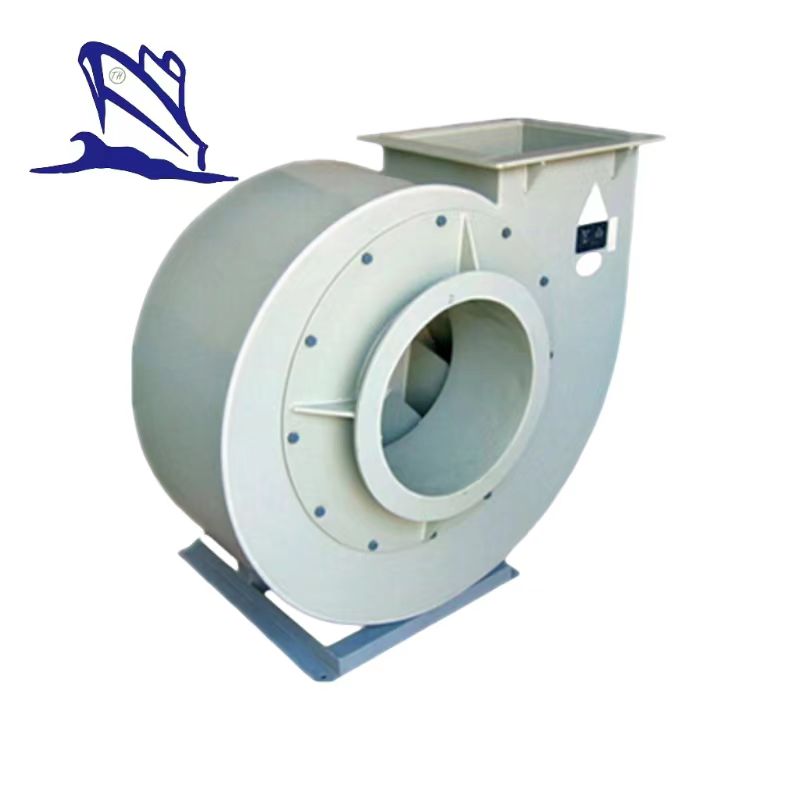

JCL(CLQ) series marine centrifugal fan is capable of blowing air, such as ocean air containing salt vapor and corrosive air containing oil vapor and a small quantity of acid steam which generated by the natural evaporation of the batteries. So it can be widely used for ventilation of various cabin rooms and the boiler, they are also applicable in other places that suit.

The fan is designed and manufactured according to the standard of GB11865 《Marine Centrifugal Fan》and 《The manufacture Rules of Sea-going Steel Ships》which approved by the Register of the People's Republic of China.

Features :

Small in size and light in weight . Low noise and low vibration .

Good anti-corrosiveness. Good air tightness

Small starting torque. Strongly performance of resisting swing, vibration and shocking

Model Explanation :

JCLQ-15

JC - Marine or navy use

L - Centrifugal fan

Q - Forward fan

15 - Impeller's diameter

Performance Parameter :

Model No	Folw rate	Total pressure	Static pressure	Speed	Motor			Weight
	m3/h	Pa	Pa	r/min	Freq (Hz)	Power kw	Model	kgs
JCL-15	500	550	490	2920	50	0.75	Y-J801-2-H	25
	800	540	390
	600	780	590	3500	60
	960	645	470
JCL-16	800	600	490	2920	50	0.75	Y-J801-2-H	26
	1200	590	340
	960	860	705	3500	60
	1400	840	490
JCL-17	800	695	590	2920	50	0.75	Y-J801-2-H	27
	1200	685	440
	960	1000	840	3500	60
	1400	980	635
JCL-18	1200	810	635	2920	50	0.75	Y-J801-2-H	30
	1500	810	540
	1400	1165	910	3500	60	1.1	Y-J802-2-H
	1800	1165	775
JCL-19	1500	900	735	2920	50	1.1		35
	2000	880	590
	1800	1295	1060	3500	60	1.5	Y-J90S-2-H
	2400	1265	840
JCL-20	800	245	195	1460	50	0.55	Y-J80X1-4-H	30
	960	350	285	1750	60
JCL-20	1500	1050	880	2920	50	1.5	Y-J90S-2-H	42
	2000	1030	735
	1800	1510	1265	3500	60	2.2	Y-J90L-2-H
	2400	1480	1060
JCL-21	2000	1175	930	2920	50	1.5	Y-J90S-2-H	42
	2500	1165	785
	2400	1685	1330	3500	60	2.2	Y-J90L-2-H
