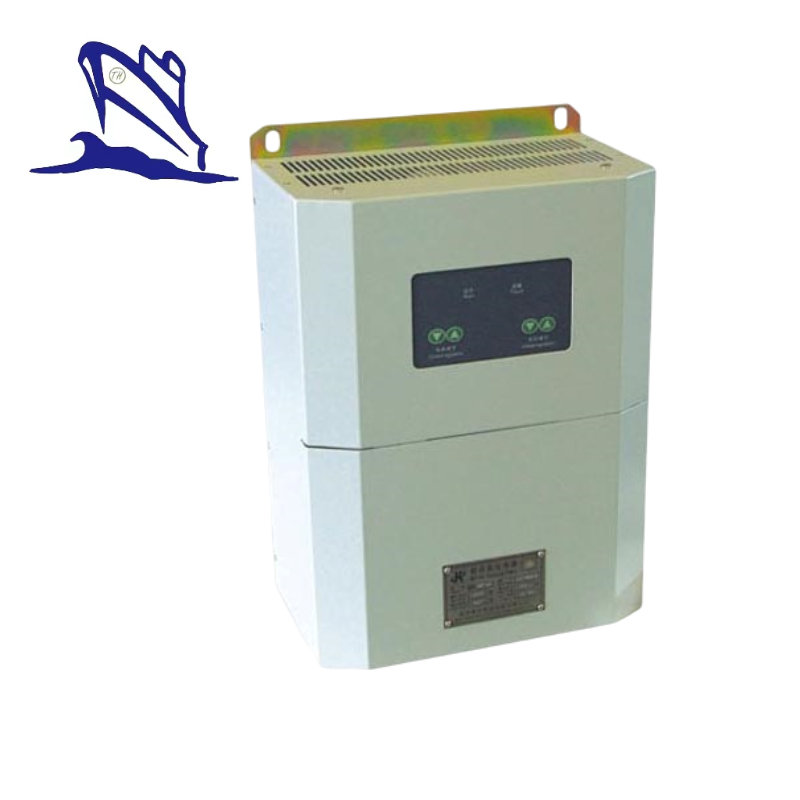

Multiple Function Marine Automatic Charger
Multiple Function Marine Automatic Charger Application
Multiple Function Marine Automatic Charger is used to all kinds of offshore platforms, ships, to provide a stable and reliable charging of all kinds of batteries on board.
Multiple Function Marine Automatic Charger Features
1)Protection for Over-voltage,Under-Voltage of input and over-current and short circuit for output(only available for 2KW and above)
2)Input voltage can be single-phase 110V to 380V or three-phase 220V to 440V
3)Applicable battery capacity from 80AH to 2000AH or higher
4)Three stage charging, charging mode automatic switched
5)Applicable to any type of battery
6)Charger Voltage Temperature Compensation Module is available for battery charger in different environments.
7)Different Function Configuration is available to meet varieties requirements.
8)Several dimensions are available to be easily assembly inbattery charging and discharging panel
9)When the charger charges the battery while it powers the load in the same time,the charger can be automatically switched to regulated power after fully charged the battery.
10)Output Voltage and Output Current can be adjusted manually.
Multiple Function Marine Automatic Charger Technical Data
| Model | HDMC |
| Input Voltage | AC110V±15%；AC220V±20%；AC380V±20%；AC440V±15%(Single-phase or three-phase available for each type of input voltage) |
| Regulator accuracy | ≤1% |
| Constant current accuracy | ≤1% |
| Output voltage ripple | Vp-p≤1% |
| Output Rated Voltage | DC12V,24V,48V,110V,220V(optional) Floating Charge Voltage for each battery:13.2V, Equalizing charge Voltage:14.1V |
| Output Rated Current | 10A,20A,30A,40A,60A,80A,125A,150A,200A(Optional) |
| Efficiency | ≥85%(Rated Test) |
| Working time | long time |
| Cooling method | Air cooling |
| Protect Grade | IP20,IP22、IP44 |
| Protect Function | Over-voltage,Under-Voltage of input(Optional) and over-current and short circuit for output,Over-heating |
Multiple Function Marine Automatic Charger Service Condition
| Working temperature | -10℃～50℃ |
| Storage Temperature | -40～85℃ |
| Relative humidity | ≤90%(40±2%) |
| Atmospheric pressure | 70～106Kpa |
| Transverse inclination | ±15° |
| Trim | ±5° |
| Rolling | ±45°(Cycle 5～12S) |
| Pitching | ±10°(Cycle 5～7S) |
