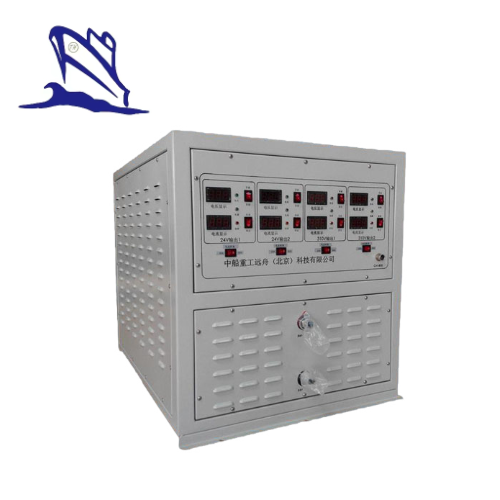

High Current Marine Automatic Charger
High Current Marine Automatic Charger Application
High Current Marine Automatic Charger is used to all kinds of offshore platforms, ships, to provide a stable and reliable charging of all kinds of batteries on board.This product can also be used on large vehicles, aviation, railways, telecommunications, electric vehicle (electric forklift, electric cars, golf car, tractor, light tour bus), storage and transportation and other industries, it is also mandatory product for battery maintenance business.
High Current Marine Automatic Charger Features
1)Protection for Over-voltage,Under-Voltage of input and over-current and short circuit for output(only available for 2KW and above)
2)Input voltage can be single-phase 110V to 380V or three-phase 220V to 440V
3)Applicable battery capacity from 80AH to 2000AH or higher
4)Three stage charging, charging mode automatic switched
5)Applicable to any type of battery
6)Charger Voltage Temperature Compensation Module is available for battery charger in different environments.
7)Different Function Configuration is available to meet varieties requirements.
8)Several dimensions are available to be easily assembly inbattery charging and discharging panel
9)When the charger charges the battery while it powers the load in the same time,the charger can be automatically switched to regulated power after fully charged the battery.
10)Output Voltage and Output Current can be adjusted manually.
High Current Marine Automatic Charger Technical Data
| Model | YZC |
| Input Voltage | Single Phase 110VAC or 220VAC±15% or 85～264VAC Three Phase 210VAC or 380VAC±15% or DC0-1000V |
| Regulator accuracy | ≤1% |
| Constant current accuracy | ≤1% |
| Output voltage ripple | Vp-p≤1% |
| Output Rated Voltage | DC 0V~700V(Can be adjusted manually) Floating Charge Voltage for each battery:13.2V, Equalizing charge Voltage:14.1V |
| Output Rated Current | 0A~1000A(Can be adjusted manually) |
| Efficiency | ≥90%(Rated Test) |
| Working temperature | -10℃～55℃ or -20℃ to 65℃ |
| Working ambient humid | Less than 90% |
| Protect Function | Over-voltage,Under-Voltage of input(Optional) and over-current and short circuit for output,Over-heating |
High Current Marine Automatic Charger Speficiations
| Model | Battery Voltage(V) | Battery Capacity(AH) | Output Voltage(V) | Output Current(A) | Full load efficiency | Communication Method |
| YZC-12KW-128V | 128V | 200AH-300AH | 146V | 85A | ＞92% | CAN2.0 or RS485 |
| YZC-12KW-256V | 256V | 100AH-200AH | 292V | 42A | ||
| YZC-12KW-384V | 384V | 60AH-100AH | 438V | 30A | ||
| YZC-20KW-192V | 192V | 300AH-400AH | 219V | 100A | ||
| YZC-20KW-384V | 384V | 100AH-200AH | 438V | 50A | ||
| YZC-20KW-576V | 576V | 60AH-100AH | 657V | 30A | ||
| YZC-30KW-256V | 256V | 300AH-400AH | 292V | 100A | ||
| YZC-30KW-384V | 384V | 200AH-300AH | 438V | 70A | ||
| YZC-30KW-576V | 576V | 100AH-200AH | 657V | 50A | ||
| YZC-40KW-496V | 496V | 200AH-300AH | 565V | 70A | ||
| YZC-40KW-576V | 576V | 150AH-300AH | 657V | 60A | ||
| YZC-40KW-640V | 640V | 100AH-200AH | 730V | 55A | ||
| YZC-50KW-704V | 704V | 100AH-200AH | 803V | 60A | ||
| Dimension can be made per battery arrays,and OEM is available for non-standard products. | ||||||
