MARINE WIPERS

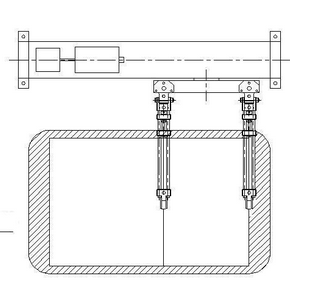

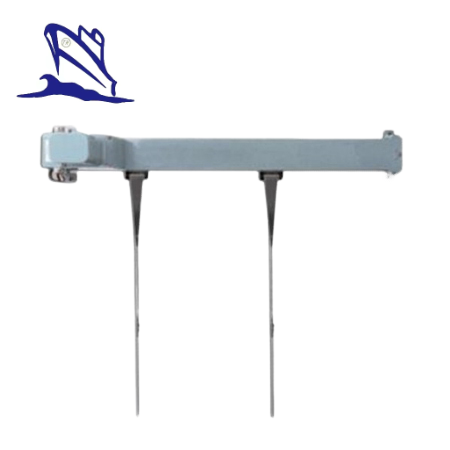

Double-Armed Straight Line Marine Wiper

It is mainly used in the big window of the ship. It is the straight line marine window wiper to be used for side scuttles in pilothouse and operating cab in a vessel. It is powered via a speed-adjustable motor. Its guide rail is made of aluminum alloy, which drives rubber wiper blade mounted at lower end of stainless swing rod to wipe the glass horizontally; Thus to wipe off sea water, rain, water and snow, as a result, to obtain a clear visual field. This product is appropriate for various naval vessels and civil vessels.

Parameters:

1.Power supply:AC220V,AC10V,DC24V

2.Power supply frequency: 50Hz/60Hz

3.Stroke of wiping(mm):1600≤St≤2500

4.Wiping speed:0.3~1.2m/s

5.Input Power:90w

6.Heater power:80-450w

7.Protection class:

Outdoor part:IP67

The indoor section:IP23

8.Outline dimension of control box(only for reference):

Box(mm):130x100x132

Faceplate(mm):150x120x4

9.Power box external dimensions:

Box(mm):250x200x145

Mounting dimensions:280x170

10.Installation:

Main unit is mounted above outdoor side scuttle with the rod swinging downwards. If needing

other installation method, both parties should confirm a special design and note it in technical

Specification..

11.Weight:≤26kg

12.Optional parts: heater, waterworks, automatic resetting
