MARINE COMMUNICATION EQUIPMENT

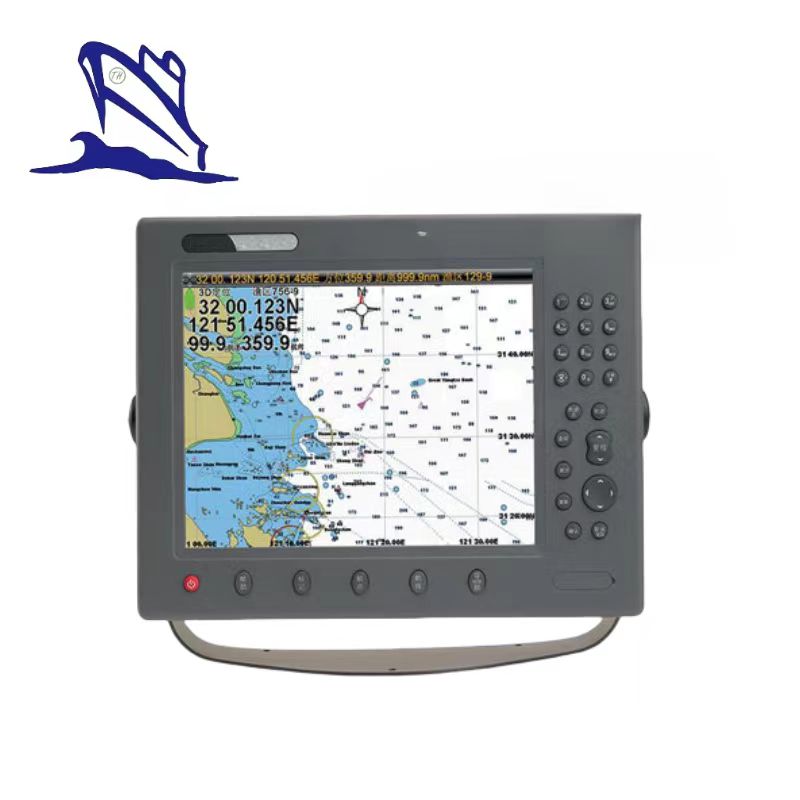

12-inch Class B Ship-borne Automatic Identification System

Features:

1. Display size: 12'

2. Resolution: 800*600

3. External dimension 366mm x 285mm x 98mm

4. Display mode: TFT LCD color display

5. Operating mode: adjustable backlight button, shortcut button, T9keyboard

6. Language: simple Chinese\English\Traditional Chinese

7. Voltage range: 11~35V DC

8. Power dissipation: ≤ 15W

9. Compass safe distance of: ≥ 1.5 m

10. Certificate: CCS approved

Specifications:

AIS

1. Receiving frequency: 156.025-162.025MHz

2. Default channel: CH2087, CH2088

3. Band width: 25kHz

4. Modulation type: GMSK

5. Receiving sensitivity: superior to-107dBm

GPS Receiver

1. Adopt high speed stable technology

2. Positioning accuracy: < 15m, 95% accuracy

3. Positioning time: cold start 45s, warm start15s

Navigation Performance

1. Way points: 6000

2. Signs: 6000

3. Route: 200, each route contains 99 way points

4. Track: ≥ 200(number of way points≥ 60000)

Interface

1. GPS output: RS-422, NMEA0183, 4800BPS

2. AIS input/output: RS-422, NMEA0183, 38400BPS

3. Sonar input/output: RS-422, NMEA0183, 115200BPS

4. GPS antenna interface: BNC base, impedence50Ω

5. VHF antenna interface: UHF base, impedence50Ω

6. Power interface: 24V DC

Environment

Temperature: -15℃~50℃

Protection Level: IP44
