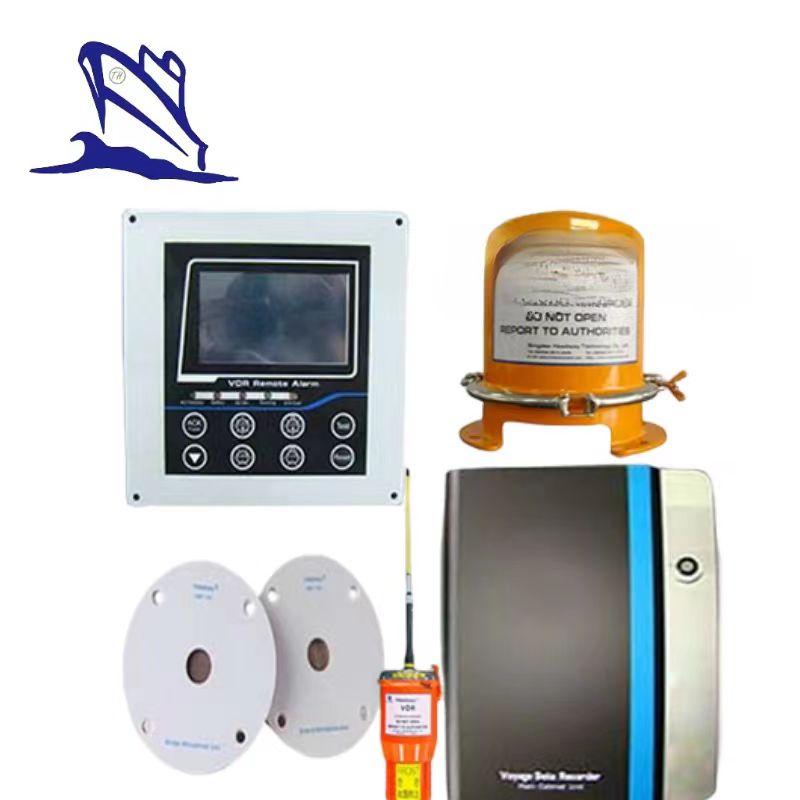

20W Simplified Voyage Data Recorder
20W Simplified Voyage Data Recorder
Features:
1. Power: 20W
2. Weight: approx. 25kg
3. Voltage: AC110/220V, 50Hz/60Hz, DC24V
4. Data recording: continuous recoding 30 days (main cabinet unit), 48 hours (recording medium)
Configuration and main parameter:
Components | Quantity | Dimensions (unit: mm) | Weight |
Main cabinet unit | 1 | 437×340×100（L*W*T） (with mounting accessories) | 9.6kg |
Remote acquisition unit | 1 | 244×214×47 (L*W*T) (with mounting accessories) | 1.4kg |
Protective data capsule(PDC) | 1 | 205×305 (D*H) (with mounting accessories) | 8.9kg |
Float-free protective data capsule(FPDC) | 1 | 420×150(D*H) (with mounting accessories) | 3.9kg |
Interior microphone | 4 | φ108×50(D*H) (with mounting accessories) | 0.2kg |
Exterior microphone (IP56) | 2 | φ108×50(D*H) (with mounting accessories) | 0.2kg |
Remote alarm panel | 1 | 175×140×38(L*W*T) (with the fixed shelf) | 0.7kg |
Total weight | 24.9kg |
