MARINE COMMUNICATION EQUIPMENT

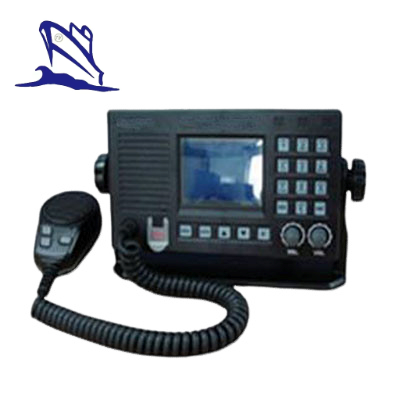

Class-A Standard GMDSS VHF DSC Radiotelephone

This product is a high performance VHF radiotelephone, capable of voice communication and DSC (digital selective calling) facilities as well. Conforming to Class A standard set for VHF DSC by ITU and IMO regulation, this radiophone can be part of onboard GMDSS package for vessels of A1, A2 or A3.

CONFIGURATION

• STANDARD

  Transceiver Unit with Speaker Microphone


  Installation Material and Spare Parts

• OPTION

Power supply unit

External speaker

VHF antenna (one for TX/RX, one for DSC watch)

SPECIFICATIONS

• Frequency range

Transmit: 156.025-157.425MHz

Receive: 156.025-163.275MHz

• Tx power: 25W and 1W

• Modulation: G3E (voice), G2B (DSC)

• Rx sensitivity: 1µV at 20dB SINAD

• Interface

Input: GPS signal (RMC, GGA, GNS, GLL)

Output: (S) VDR_TX, (S) VDR_RX, Speaker

• Power supply: 13.8V DC, 5.5A max.

• Operating environment:

Temperature:-15℃～55℃

Humidity: less than 93%
