Launching Appliance of Free-fall Lifeboat
Product Description

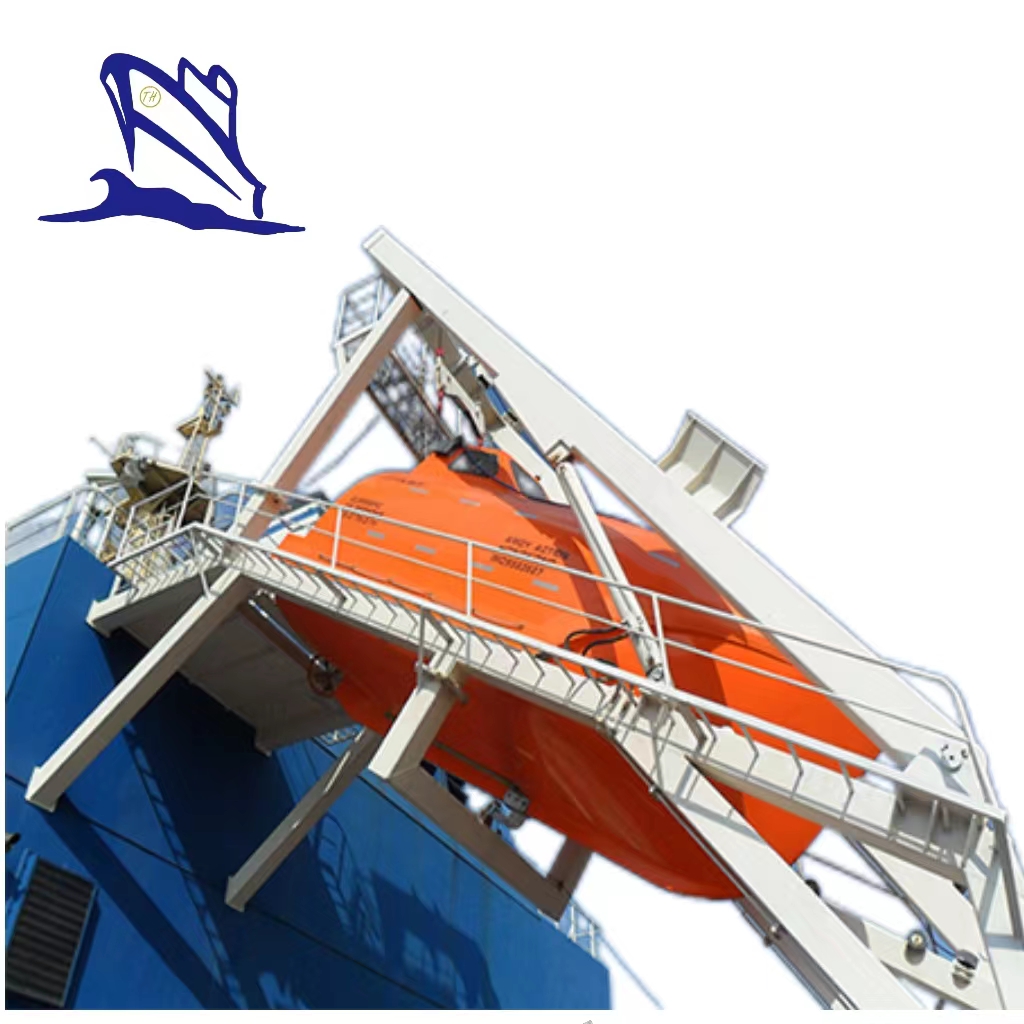

The Freefall Davit placed at the stern of the ship consists of a launch ramp davit arm, winch and hydraulic unit. This device can make lifeboat freely land to water surface in an emergency or under the circumstances of trim 20°and list 10°. It meets requirements of International Safety of Life at Sea 1974, IMO, MSC. 81(70) and other regulations.
The Freefall Davit:
Quick get away from sinking vessel
Always standby for launch
Launching ramp for freefall lifeboats in a welded or flanged box girder execution
Suitable for all types of freefall boats
Other sizes/dimensions available on request
Basic specification for enquiry:
Required lifting capacity
Outreach – min / max
Lifting height
Lifting speed
Luffing time
Self-weight of the davit
Power pack: (hydraulic, electric, or any other)
Power source
Required Classification societies
Specifications:
S.W.L | Hoisting Load(KN) | Weight | Main Dimensions(mm) | ||
A | B | C | |||
55 | 40 | 7800 | 7000 | 3134 | 7000 |
65 | 50 | 8500 | 7200 | 3134 | 8000 |
80 | 54 | 10700 | 7850 | 3040 | 9000 |
