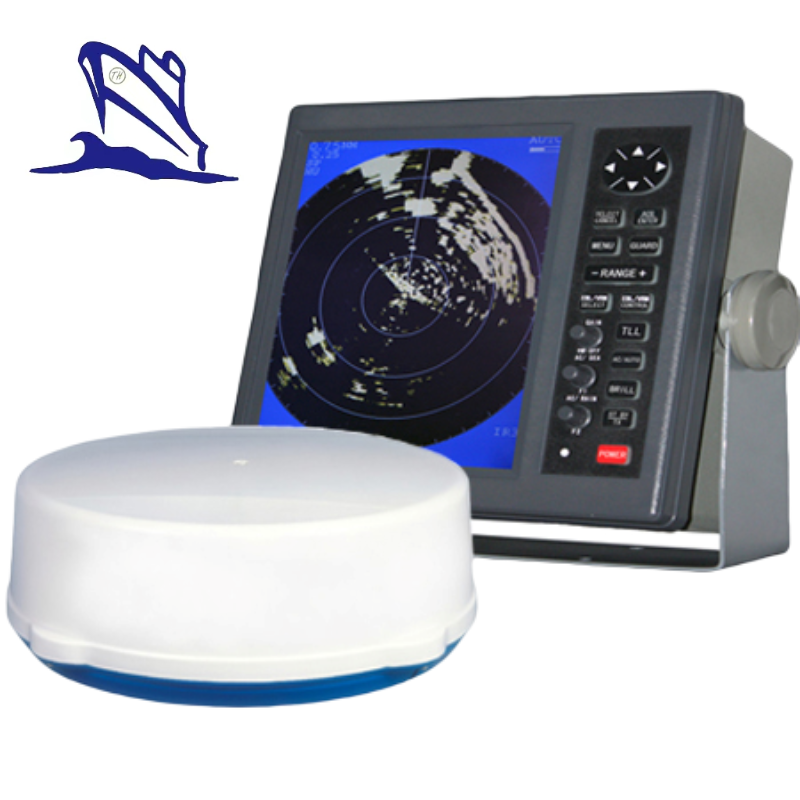

10.4-Inch Marine TFT Radar
10.4-Inch Marine TFT Radar
10.4-Inch Marine TFT Radar adds a new function of AIS, and this function makes your voyage safer. Compared with traditional radar, this radar provides a clearer image for operator. It employs a power-saving mode, and simple ARPA function. All of them is aim to reduce consumption in every aspects. Three are two models provided: KR-1338C, KR-1668C. If you want to know more details,please contact us.
Features
▪ New AIS function
▪ Waterproof shell
▪ Various background colors supported
▪ High power output
▪ Clearer radar images
Specifications
Project | Data | |
Antenna Radiator | Type | KR-1338C: 55cm slotted waveguide display |
KR-1668C: 120cm slotted waveguide display | ||
Length and Speed | KR-1338C: radome 60cm (KRA-1002) 24rpm KR-1668C: open array 120cm (KRA-1003) 24rpm | |
Wind Load Capacity | relatively wind load 100 knots | |
Beamwidth | KRA-1002 Hor: 4°, Vert:25° | |
RF Transceiver | Frequency | 9410±30MHz X-band |
Peak Output Power | 4KW | |
Modulation Mode | field-effect tube switch mode | |
Intermediate Frequency | 60MHz | |
Bandwidth | 25MHz(0.08,0.3µs), 3MHz(0.8µs) | |
Noise | 10dB | |
Display Unit | Type | 10.4’’ TFT LCD |
Display Modes | head-up, course-up*, north-up*, true motion** (*heading input required, **heading and speed inputs required) | |
Range Scales | Range:0.125,0.25,0.5,0.75,1,1.5,2,3,4,6,8,12,16,24,38 Range Ring:0.0625,0.125,0.125,0.25,0.25,0.5,0.5,1,1,2,2,3,4,6,12 | |
Echo Trail | Interval: 15s, 30s, 1min,3min, 6min, 15min, 30min, or continuous | |
Interface | NMEA0183 | |
External AIS Function | showing AIS information in real time | |
Temperature | Display Unit | -15-+55℃ |
Antenna | -25℃-+70℃ | |
Power Supply | DC 10.5-40.0V, 60W (30W in economy mode) | |
