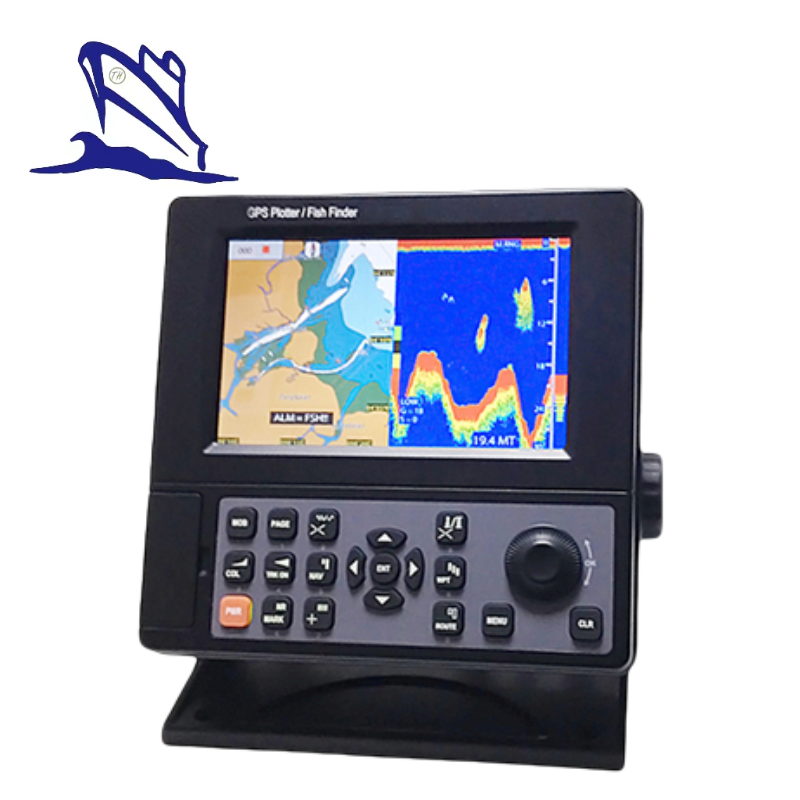

7-Inch LCD Chartplotter and Fish Finder Combo
7-Inch LCD Chartplotter and Fish Finder Combo
7-Inch LCD Chartplotter and Fish Finder Combo is designed for vessels which demand high performance, simple operation and feature integration. It equips WVGA LCD with backlight, dual-frequency 50/200Hz probe, internal high precision GPS. This product supports the display of dual-screen, digital interface, satellite data and 3D projection. This product is available in the following languages: English, Chinese Simplified, Chinese Traditional, Vietnamese, Malaysian, Turkish, Thai, Greek, Indonesian, Japanese.
Features
▪ 7’’ WVGA LCD
▪ high precision internal GPS
▪ internal AIS receiver
▪ Preloaded insight maps
▪ ease of operation
▪ handy features
Specifications
Project | Data |
Display Size | 7’’ WVGA LCD |
Display Mode | dual-screen, digital interface, satellite data display, 3D projection display, full screen chart display |
Resolution | 800×480 |
Transmitting Frequency | 50 kHz /200 kHz |
Probe | dual frequency 50 /200 kHz |
Probe Emission Angle | 50 kHz @45°, 200 kHz @11° |
Position Format | Lat/Lon (dd mm.mmm) |
Waypoints | 10,000 (8 symbols, 8 colors) |
Tracks | 262,144 (200 track lines) |
Routes | 200, 48 waypoints each |
Map Scale | 0.01, 0.02, 0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10, 25, 50, 100, 200 sea mile |
Alarms | dragging, arrival, off-course, CPA, TCPA, AIS, overspeed |
Operation Temperature | 0℃- +40℃ |
Input Power | DC 11-36V, 6W( MAX 10W) |
