MARINE NAVIGATION EQUIPMENT

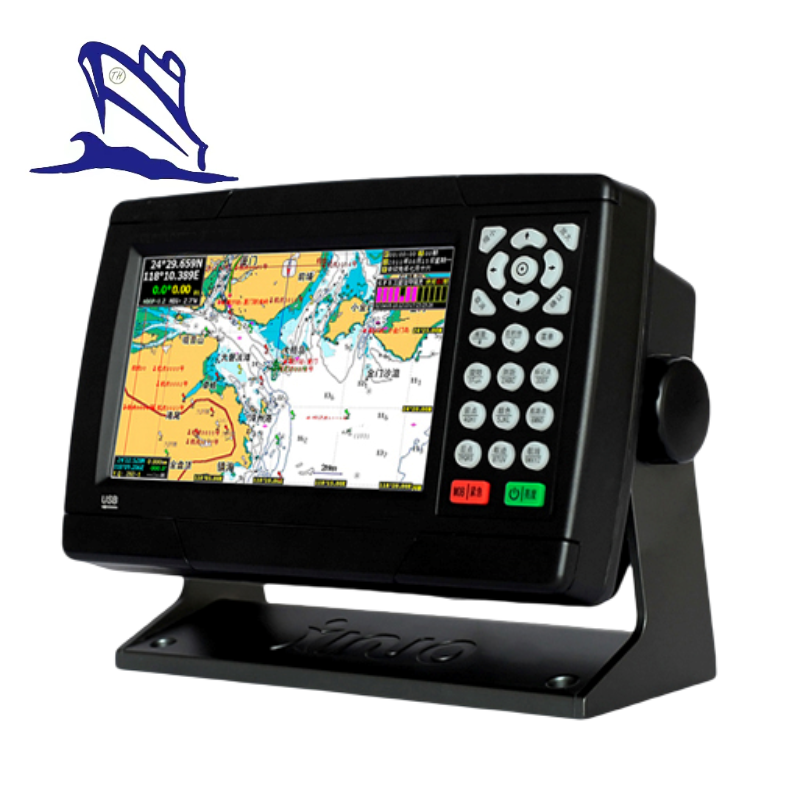

7-Inch Waterproof Marine GPS Navigator

7-Inch Waterproof Marine GPS Navigator

7-Inch Waterproof Marine GPS Navigator employs real-time voice broadcast which makes navigation more accurate. The display equips LED-backlight which makes you read easily. And it equips detailed large range charts. It updates chart rapidly. The large-capacity memory can store rich data. This product can be mounted in table installation or top installation. If you are interested in this product, welcome to contact us.

Features

▪ 7’’ LCD with backlight

▪ Waterproof casing

▪ Real-time voice broadcast

▪ Easy to upgrade via U-disk

▪ Dynamic real-time plotting of all AIS targets and motion vectors

Specifications

Project	Data
Display Size	7’’
Resolution	WVGA800×480
GPS Receiver	12 channels GPS
Frequency	1575.42MHz
Updating Frequency	1 time/second
Waypoints	10,000 points
Tracks	200
Routes	200 lines
Data Interface	NMEA0183/RS422
Power Supply	10V-40V
Working Temperature	-15℃-+55℃
Dimension	257×187×105mm
Other Function	intelligent voice, tide, yaw alarm, MOB, compass interface,etc

Parts list

▪ 7’’ Marine GPS Navigator

▪ GPS antenna

▪ 6 core data line

▪ Power line

▪ Installation fixed screw
