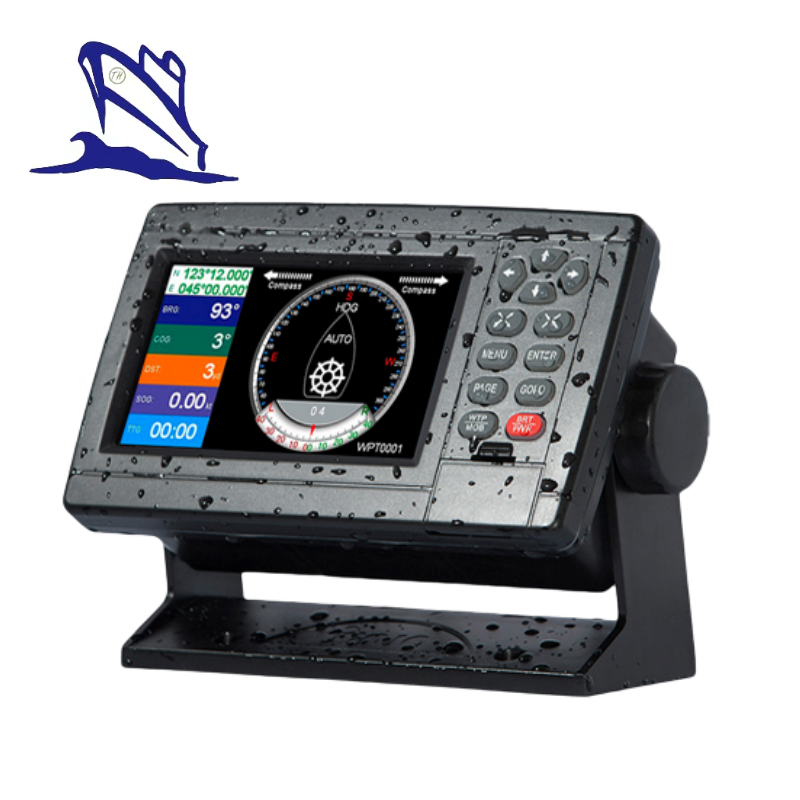

5-Inch Marine GPS Navigator
5-Inch Marine GPS Navigator
5-Inch Marine GPS Navigator is quite small. The display size is only 5 inches. Although this product is small, but its function quite complete. It equips with a low-consumption and high-performance core processor. It supports real-time voice broadcast, which makes navigation more accurate. Besides, It has wide range suitable voltage. If you want to know more about this product, please contact us.
Features
▪ 5’’ liquid crystal display
▪ Waterproof
▪ Intelligent voice broadcast
▪ A low-consumption and high-performance core processor
Specifications
Project | Data |
Display Size | 5’’ |
Resolution | 480×272 |
Waterproof | IPX6 |
LCD Brightness | 400cd/㎡ |
Weight | 2.5 kg |
Waypoints | 200,000 points |
Tracks | 10,000 points |
Routes | 800lines |
Updating Frequency | 1 time/second |
Data Interface | NMEA0183/RS422 |
Power Supply | 12V-36V |
Working Temperature | -15℃-+55℃ |
Dimension | 20.3×13.3×7.83cm |
Other Function | loading chart, SD card upgrade, expanding the char of memory space, supporting voice navigation and alarms |
Parts list
▪ 5’’ Marine GPS Navigator
▪ GPS antenna
▪ 6 core data line
▪ Power line
▪ Installation fixed screw
Pictures of Dimensional Drawing
