MARINE ELECTRIC CONNECTORS

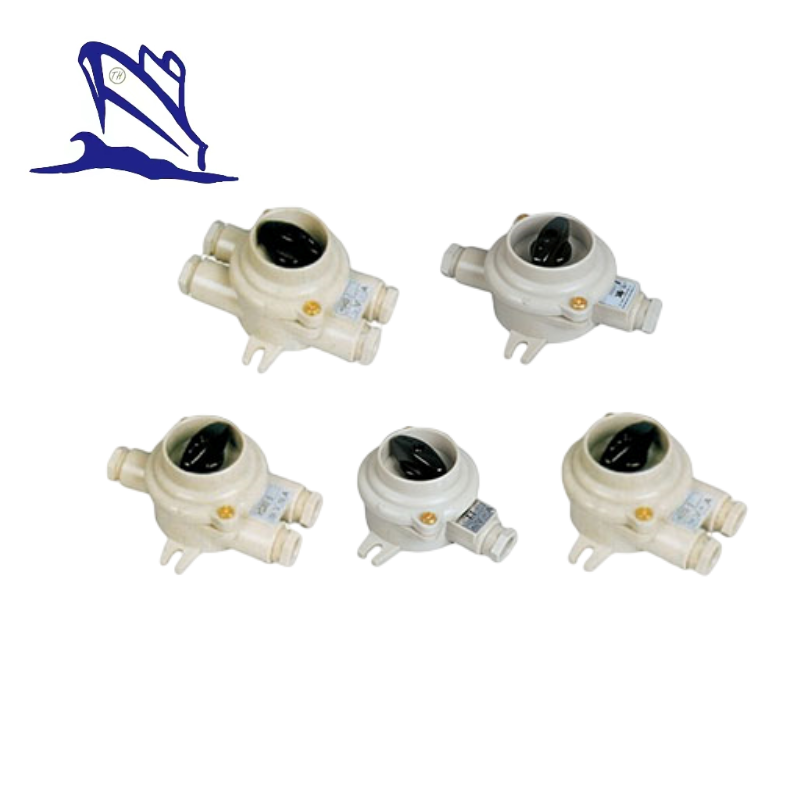

Marine Nylon Switch

Marine Nylon Switch

Marine Nylon Switch is used for connecting cutting on or off the appliance circuit with AC or CD low-voltage.The protection class is IP56.The adopted standard is DIN89270.There are five types as follows:

Technical Parameter :

Protection class:IP56

Adopted standard:DIN89270

Cable outside diameter: Φ14~φ16


Specifications:

Code	Type	Rating voltage	Weight
1133\FS	HS101-1\2\3\4\5	24V\125V\250V\(380V\440V)\(380V\440V)	0.22kg

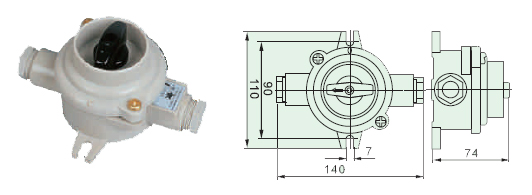

1133\FS Marine Nylon Switch Drawing

Code	Type	Rating voltage	Weight
1133\D\FS	HS201-1\2\3\4\5	24V\125V\250V\(380V\440V)\(380V\440V)	0.23kg

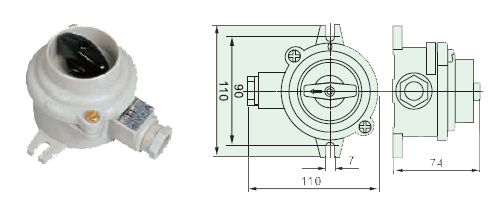

1133\D\FS Marine Nylon Switch Drawing

Code	Type	Rating voltage	Weight
1133\2\FS	HS202-1\2\3\4\5	24V\125V\250V\(380V\440V)\(380V\440V)	0.23kg

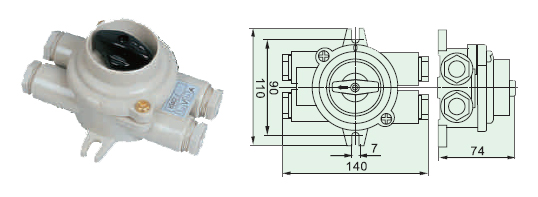

1133\2\FS Marine Nylon Switch Drawing

Code	Type	Rating voltage	Weight
1133\3\FS	HS302-1\2\3\4\5	24V\125V\250V\(380V\440V)\(380V\440V)	0.24kg

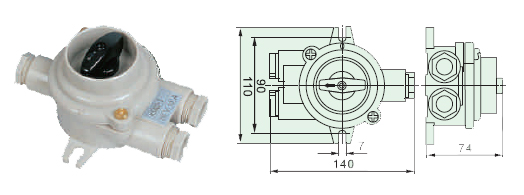

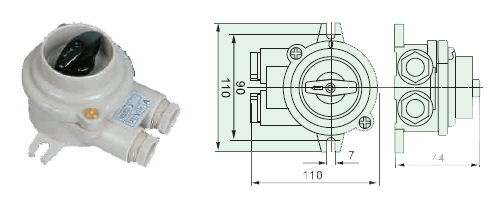

1133\3\FS Marine Nylon Switch Drawing

Code	Type	Rating voltage	Weight
1133\2D\FS	HS402-1\2\3\4\5	24V\125V\250V\(380V\440V)\(380V\440V)	0.25kg
