MARINE ELECTRIC CONNECTORS

Marine Nylon Junction Box

Marine Nylon Junction Box is used for connecting marine electrical circuit.Wire tube connects to the junction box. The junction box is used astransition.And then wire in the tube is connected in the junction box to protect the wires and connection wires.

Technical Parameter :

Protection class:IP56

Adopted standard:DIN89250

Cable outside diameter: Φ14~φ16

Specifications:

Code	Type	Weight
1151\FS	JXS201	0.20kg

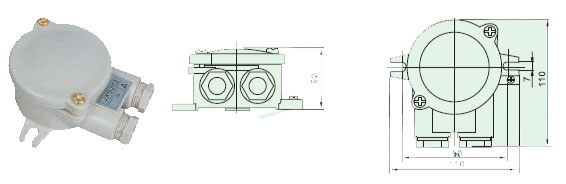

JXS201 Marine Nylon Junction Box Drawing

Code	Type	Weight
1150\FS	JXS202	0.20kg

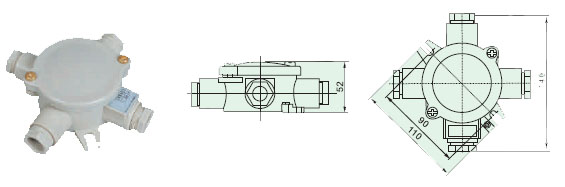

JXS202 Marine Nylon Junction Box Drawing

Code	Type	Weight
1152\FS	JXS301	0.21kg

JXS301 Marine Nylon Junction Box Drawing

Code	Type	Weight
1156\FS	JXS202	0.21kg

JXS202 Marine Nylon Junction Box Drawing

Code	Type	Weight
1153\FS	JXS401	0.22kg

JXS401 Marine Nylon Junction Box Drawing

Code	Type	Weight
1155\FS	JXS402	0.22kg
