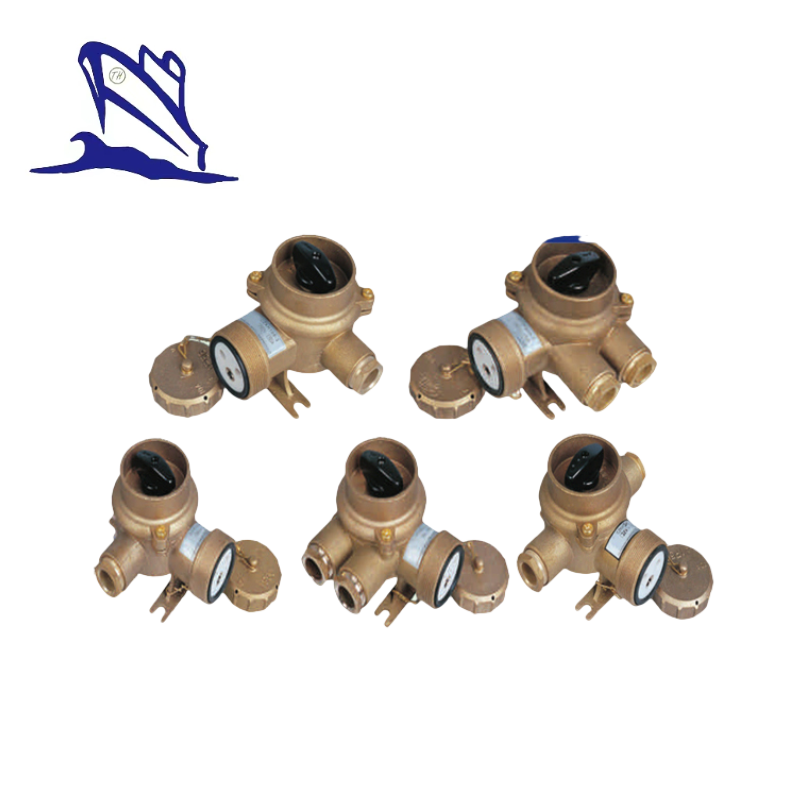

Marine Brass Switch
HNA 10A\16A Marine Brass Switch
Marine Brass Switch is used for connecting cutting on or off the appliance circuit with AC or CD low-voltage. The single pole of plug pulled out should be notless than 4N.The temperature rise of conductive part shouldn't exceed 40K.The protection class is IP56.The metal shell should have reliable earthing device.The screw of cover plate is M6 locking screw.
Technical Parameter :
Protection class:IP56
Adopted standard:DIN89270
Cable outside diameter: Φ14~φ16
Specifications:
| Code | General cable type | Shield cable type | Rating voltage | Weight | |
| 1133 | HH101-1\2\3\4\5 | HH111-1\2\3\4\5 | 24A\125A\250A\(380A\440A)\(380A\440A) | 0.80kg | |

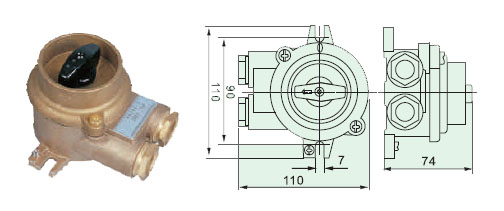

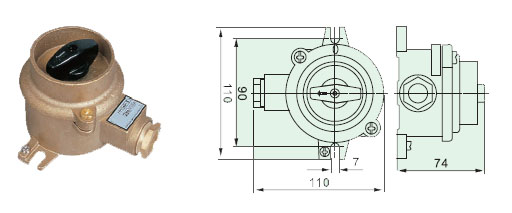

1133 Marine Brass Switch Drawing
| Code | General cable type | Shield cable type | Rating voltage | Weight |
| 1133\D | HH201-1\2\3\4\5 | HH211-1\2\3\\5 | 24A\125A\250A\(380A\440A)\(380A\440A) | 1.00kg |

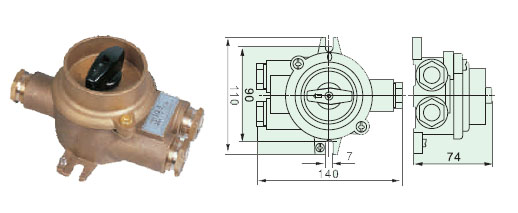

1133\D Marine Brass Switch Drawing
| Code | General cable type | Shield cable type | Rating voltage | Weight |
| 1133\2 | HH202-1\2\3\4\5 | HH212-1\2\3\4\5 | 24A\125A\250A\(380A\440A)\(380A\440A) | 1.00kg |

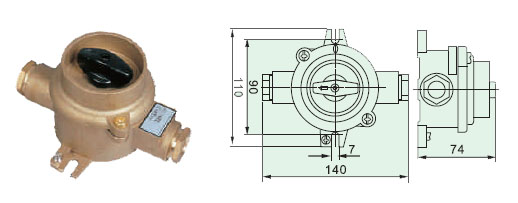

1133\2 Marine Brass Switch Drawing
| Code | General cable type | Shield cable type | Rating voltage | Weight |
| 1133\3 | HH302-1\2\3\4\5 | HH312-1\2\3\4\5 | 24A\125A\250A\(380A\440A)\(380A\440A) | 1.10kg |

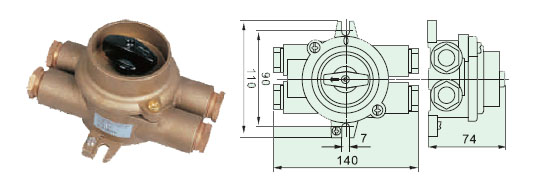

1133\3 Marine Brass Switch Drawing
| Code | General cable type | Shield cable type | Rating voltage | Weight |
| 1133\2D | HH402-1\2\3\4\5 | HH212-1\2\3\4\5 | 24A\125A\250A\(380A\440A)\(380A\440A) | 1.10kg |
