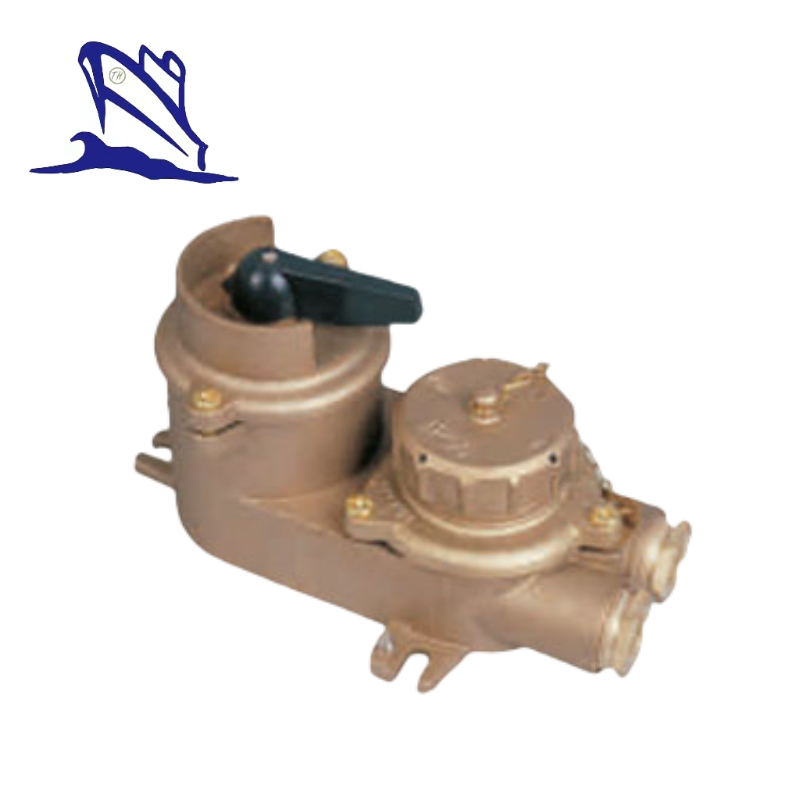

Marine Brass Socket with Chain Switch




Marine Brass Socket with Chain Switch

We provide four types of Marine Brass Socket with Chain Switch.The rating current is 10A.

Technical Parameter :

Protection class:IP56

Cable outside diameter: Φ14~φ16



Type

Rating voltage

Rating current

Weight

CZKLS2-2\D

125V

10A

2.14kg

CZKLS2-2\D2

250V

10A

2.14kg

CZKLS2-2\D3

500V

10A

2.14kg

CZKLS3-2\D3

500V

10A

2.16kg

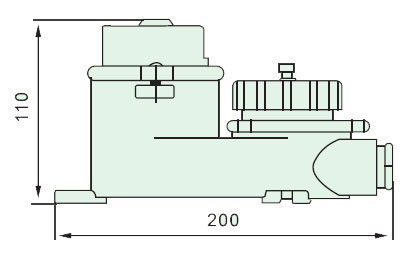

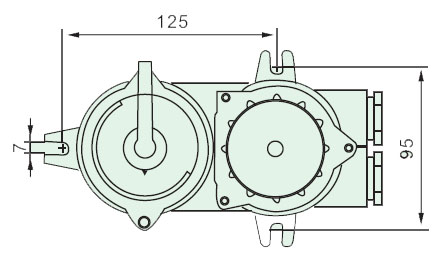

15686d11b7762ac44e04165497f0477b_CD1-150714095439.jpge3f2ea18c02b41666eb55a0a1837b986_CD2-150714095503.jpg
