MARINE ELECTRIC CONNECTORS

Marine Brass Plug and Socket

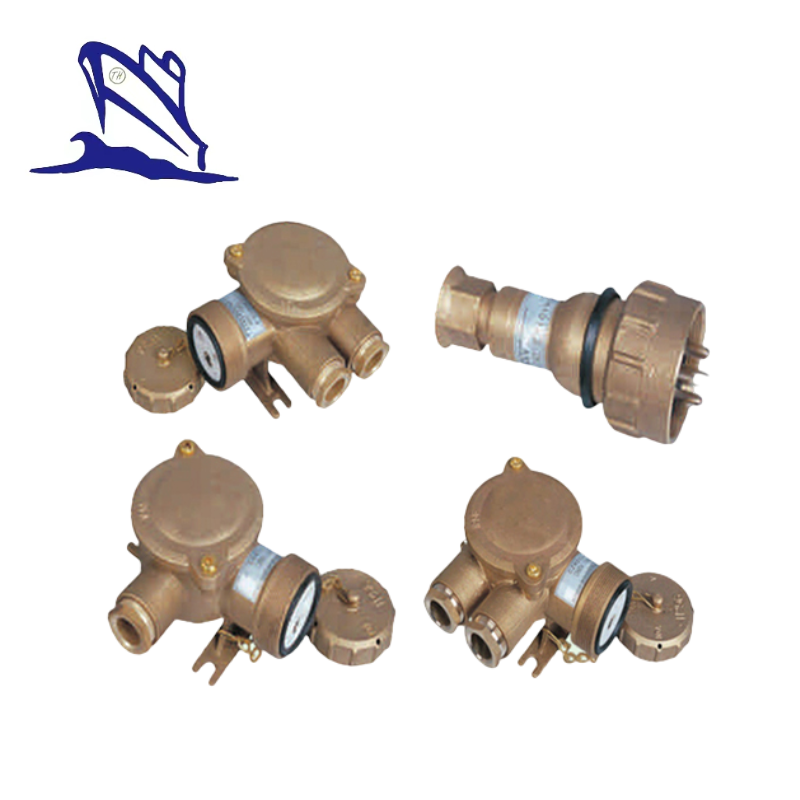

HNA 10A\16A Marine Brass Plug and Socket

Marine Brass Plug and Socket is used for connecting cutting on or closing the appliance circuit with AC or CD low-voltage. There are some details about HNA 10A\16A Marine Brass Plug and Socket as follows:

Technical Parameter :

Protection class:IP56

Adopted standard:DIN89267\89262

Cable outside diameter: Φ14~φ16

Specifications:

Code	General cable type	Shield cable type	Weight
1142\MS	CTH101-1	CTH111-1	0.56kg
	CTH101-2	CTH111-2	0.57kg
	CTH101-3	CTH111-3	0.57kg
	CTH101-4	CTH111-4	0.57kg
	CTH101-5	CTH111-5	0.58kg

1142\MS Marine Brass Plug and Socket Drawing

Code	General cable type	Shield cable type	Weight
1141	CZH201-1	CZH211-1	1.30kg
	CZH201-2	CZH211-2	1.40kg
	CZH201-3	CZH211-3	1.40kg
	CZH201-4	CZH211-4	1.50kg
	CZH201-5	CZH211-5	1.50kg

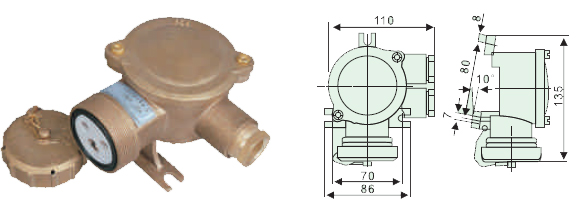

1141 Marine Brass Plug and Socket Drawing

Code	General cable type	Shield cable type	Weight
1141\R	CZH209-1	CZH219-1	1.30kg
	CZH209-2	CZH219-2	1.40kg
	CZH209-3	CZH219-3	1.40kg
	CZH209-4	CZH219-4	1.50kg
	CZH209-5	CZH219-5	1.50kg

1141\R Marine Brass Plug and Socket Drawing

Code	General cable type	Shield cable type	Weight
1141\D	CZH101-1	CZH111-1	1.40kg
	CZH101-2	CZH111-2	1.50kg
	CZH101-3	CZH111-3	1.50kg
	CZH101-4	CZH111-4	1.50kg
	CZH101-5	CZH111-5	1.60kg

1141\D Marine Brass Plug and Socket Drawing

Code	General cable type	Shield cable type	Weight
1141\2	CZH202-1	CZH212-1	1.40kg
	CZH202-2	CZH212-2	1.50kg
	CZH202-3	CZH212-3	1.50kg
	CZH202-4	CZH212-4	1.50kg
	CZH202-5	CZH212-5	1.60kg

1141\2 Marine Brass Plug and Socket Drawing

Code	General cable type	Shield cable type	Weight
1141\2R	CZH109-1	CZH119-1	1.40kg
	CZH109-2	CZH119-2	1.50kg
	CZH109-3	CZH119-3	1.50kg
	CZH109-4	CZH119-4	1.50kg
	CZH109-5	CZH119-5	1.60kg
