MARINE RUBBER FENDER

Description:

A GD Rubber Fender is a type of rubber fender commonly used in marine environments to absorb and distribute the energy generated during ship-to-ship or ship-to-dock collisions. These fenders are designed to provide protection to both the vessel and the structure they come in contact with.
GD Rubber Fenders are typically made from high-quality natural rubber or synthetic rubber compounds, which offer excellent elasticity, durability, and resistance to weather conditions, UV radiation, and seawater corrosion. They are molded into a cylindrical shape with a central hole running through the middle, allowing for easy installation using chains, rods, or bolts.
The design of GD Rubber Fenders consists of a series of parallel rubber cords or fibers embedded within the rubber matrix. These cords provide added strength and enhance the fender's ability to withstand impacts and deform under pressure. The fenders are usually reinforced with layers of nylon or polyester fabric to improve their tear resistance and overall performance.
GD Rubber Fenders come in various sizes, allowing for customization based on specific application requirements. They can be installed in different configurations, such as vertically or horizontally, depending on the intended use and the expected magnitude of impact. These fenders are known for their high energy absorption capacity, which helps reduce the impact force transmitted to the vessels and structures involved.
The key advantages of GD Rubber Fenders include their ability to withstand heavy-duty applications, their long service life, and their low maintenance requirements. They effectively protect vessels and structures from damage caused by impacts, ensuring the safety and integrity of marine infrastructure.

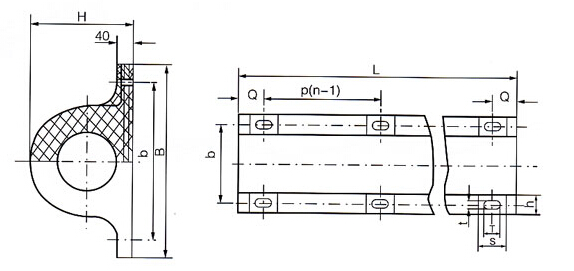

Specification of Type GD Rubber Fender:

Type	H	B	b	L	Q	p	S	h	T	t	n
GD280H×1000L	280	540	430	1000	150	700	165	120	82	41	2
GD280H×1500L	280	540	430	1500	150	600	165	120	82	41	3
GD280H×2000L	280	540	430	2000	145	570	165	120	82	41	4
GD280H×2500L	280	540	430	2500	150	550	165	120	82	41	5
GD280H×3000L	280	540	430	3000	150	540	165	120	82	41	6
GD300H×1000L	300	600	490	1000	150	700	165	120	82	41	2
GD300H×1500L	300	600	490	1500	150	600	165	120	82	41	3
GD300H×2000L	300	600	490	2000	145	570	165	120	82	41	4
GD300H×2500L	300	600	490	2500	150	550	165	120	82	41	5
GD300H×3000L	300	600	490	3000	150	540	165	120	82	41	6
