MARINE RUBBER FENDER

Description:

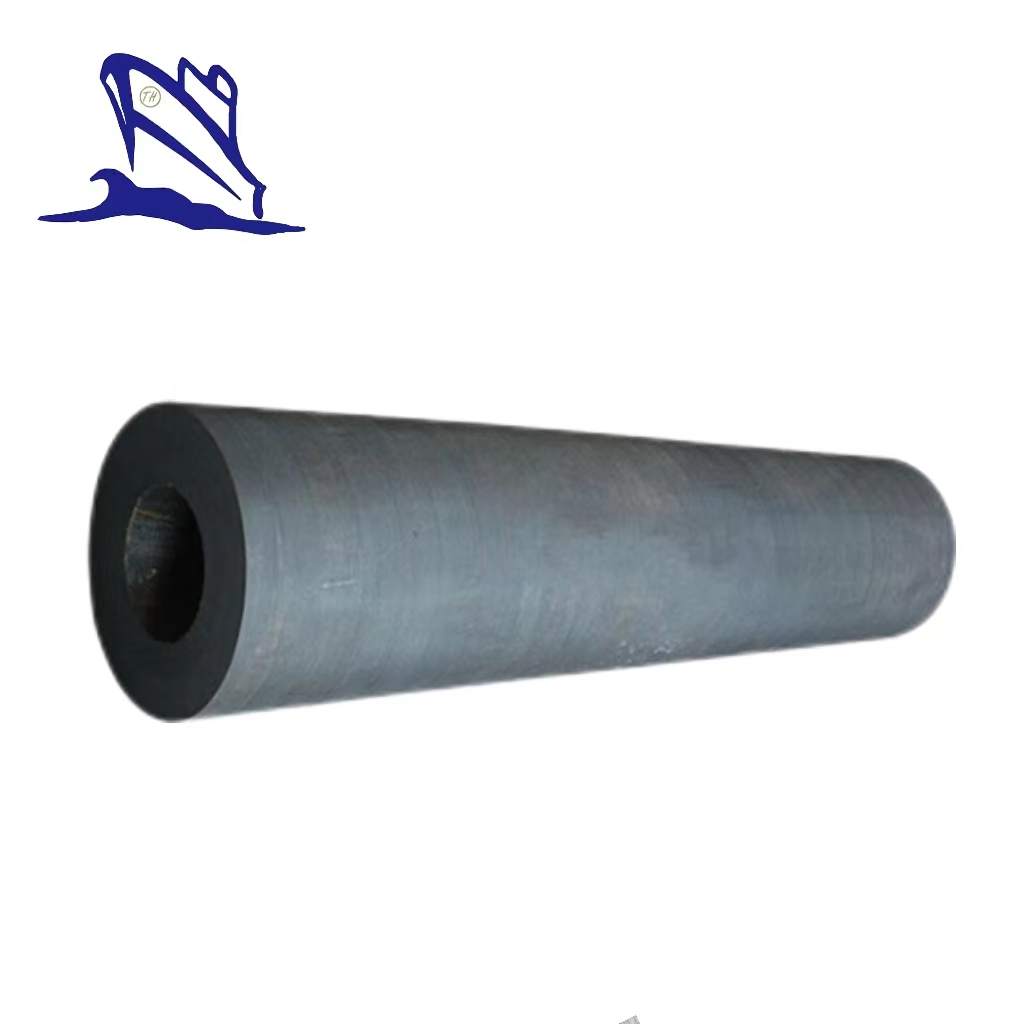

A cylindrical rubber fender is a type of marine fender designed to absorb kinetic energy and prevent damage to vessels and structures during berthing or mooring operations. It is constructed using high-quality rubber material, typically reinforced with layers of fabric for added strength and durability.

The fender is cylindrical in shape, with a hollow interior that allows for compression and deformation upon impact. It is often mounted horizontally or vertically along the sides of piers, docks, or other maritime structures, forming a protective barrier between the vessel and the structure.

The cylindrical design of the fender enables it to distribute the impact force evenly along its length, minimizing localized stress and reducing the risk of structural damage. The rubber material used in its construction provides excellent elasticity and resilience, allowing the fender to absorb and dissipate the energy generated during contact.

Cylindrical rubber fenders are available in various sizes and dimensions to suit different application requirements. They are commonly used in ports, harbors, and offshore installations to safeguard ships, barges, and other maritime assets. The fenders can withstand harsh environmental conditions, such as extreme temperatures, UV radiation, and corrosive saltwater, ensuring long-lasting performance in marine environments.

In addition to their protective function, cylindrical rubber fenders also offer other advantages. They have low maintenance requirements, are easy to install, and can be replaced individually if damaged, which reduces downtime and maintenance costs. The rubber material is non-marking, preventing unsightly blemishes or stains on the vessel's hull.

Specification of Cylindrical Rubber Fender:

Type	Inner Dia. d (mm)	Outer Dia. D (mm)	Length (mm)
H150	75	150	Customized Length
H200	100	200
H250	125	250
H300	150	300
H350	175	350
H400	200	400
H450	225	450
H500	250	500
H600	300	600
H700	350	700
H800	400	800
H900	450	900
H1000	500	1000
H1100	550	1100
H1200	600	1200
H1300	650	1300
H1400	700	1400
H1500	750	1500
H1600	800	1600
H1800	900	1800
H2000	1000	2000
