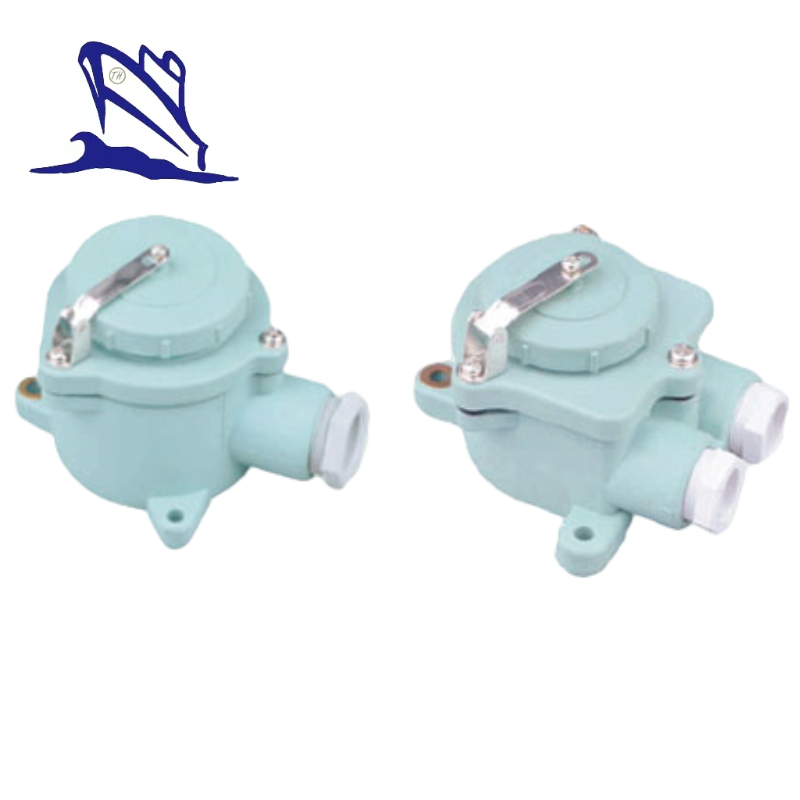

Marine Socket,Socket with Switch
Marine Socket,Socket with Switch
Marine Socket,Socket with Switch are used for connecting cutting on or off the applicance circuit with AC or DC low-voltage. The temprerature rise of conductive part should don't exceed 40K.The metatl shell should have reliable earthing device.
Technical Parameter :
Material:synthestic resin
Protection class:IP56
Conform to JISF8832,8833standard
Specifications:
Type | International code | Voltage | Current | Cable outside diameter |
Z-1M | 792806 | 2P+E 250V | 20A | φ14-φ16 |

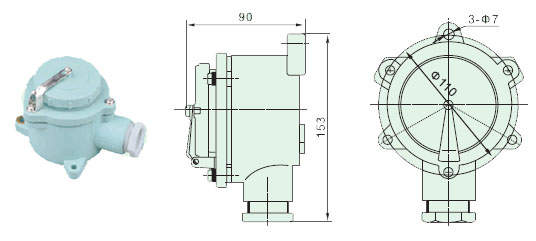

Z-1M Drawing of Marine Socket
Type | International code | Voltage | Current | Cable outside diameter |
Z-2M | 792831 | (2P+E)×2 250V | 15A | φ14-φ16 |

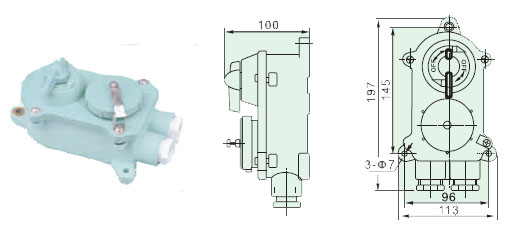

Z-2M Drawing of Marine Dual Waterproof Socket
Type | International code | Voltage | Current | Cable outside diameter |
Z-2MA | 792807 | 3P+E 250V | 15A | φ18-φ20 |
Z-2MA Drawing of Marine Waterproof Socket
Type | Voltage | Current | Cable outside diameter |
Z-M | 2P 24V | 10A | φ14-φ16 |
Z-M Drawing of Marine Socket
Type | International code | Voltage | Current | Cable outside diameter |
CZXS | 792832 | (2P+E)×2 250V | 20A | φ14-φ16 |

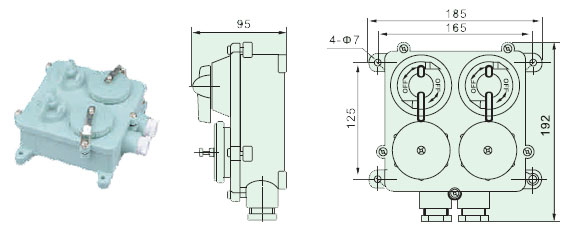

CZXS Drawing of Marine Waterproof Dual Socket Box with Switch
Type | International code | Voltage | Current | Cable outside diameter |
KZ-S2MR | 792808 | 2P+E 250V | 10A | φ14-φ16 |
