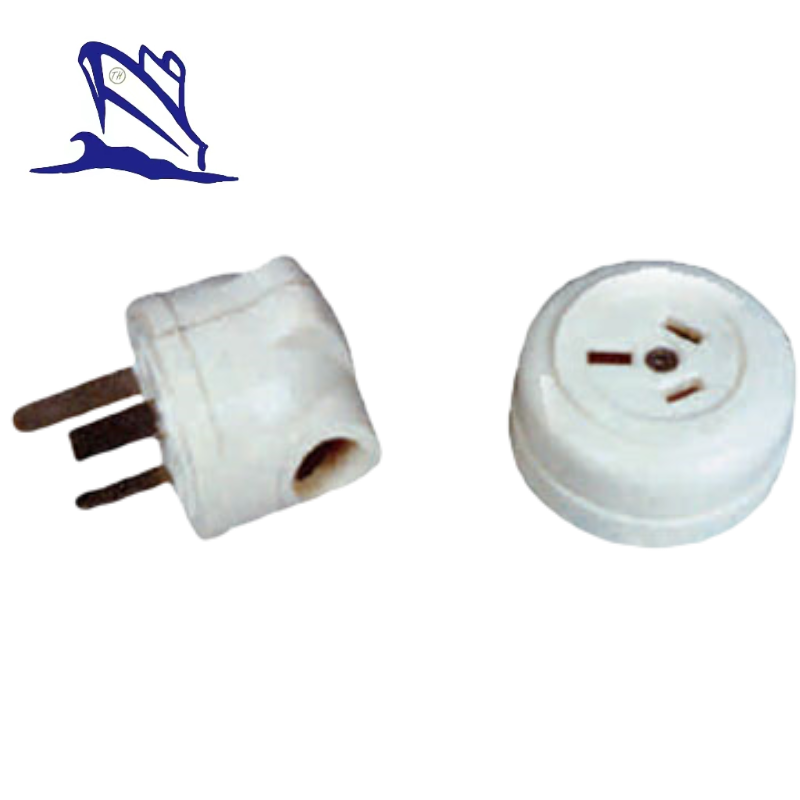

Marine Plug and Socket
Marine Plug and Socket
Marine Plug and Socket belong to series of cabin plug and socket.The volatge is 250V.The current is 15A.
Technical Parameter:
Protection class:IP20
Conform to standard:GB2099,IEC884-1
Specifications:
Type | International code | Voltage | Current |
UB | 792901 | 250V | 15A |
UB Drawing of Marine Plug
Type | International code | Voltage | Current |
UB-1B | 792904 | 250V | 15A |
UB-1B Drawing of Marine Plug
Type | International code | Voltage | Current |
U | 792902 | 250V | 15A |

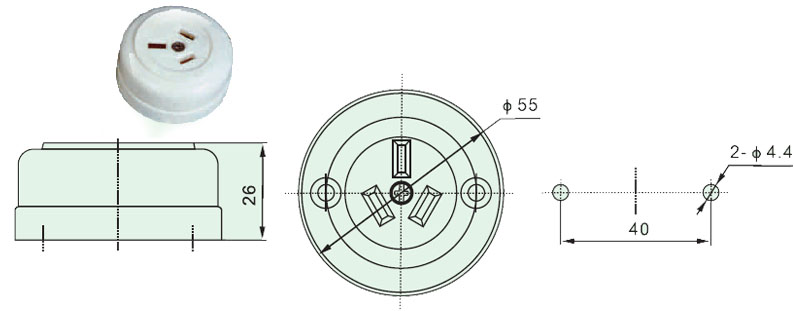

U Drawing of Marine Socket
Type | International code | Voltage | Current |
UB-1 | 792905 | 250V | 15A |
