MARINE BOLLARD

Description:

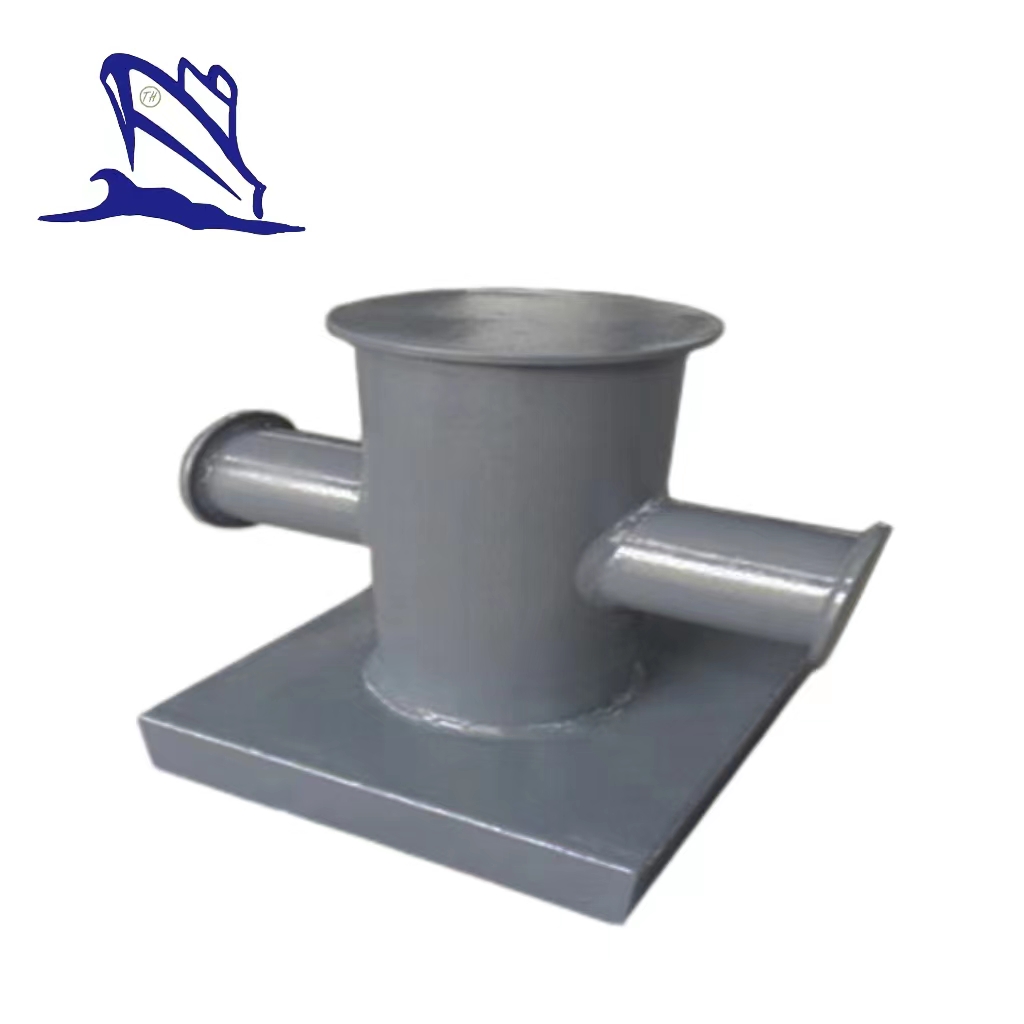

The CBT3845-2013 Marine Single Cross Bollard is a type of bollard commonly used in marine environments to secure mooring lines or ropes. It features a single cross-shaped head with four arms that extend outwards, providing multiple points of contact for ropes to be tied or wrapped around.

The bollard is typically made of high-quality marine grade materials such as cast iron, stainless steel, or bronze to ensure durability and resistance to corrosion and other harsh elements. The design of the CBT3845-2013 Marine Single Cross Bollard is carefully engineered to provide reliable and secure mooring for vessels of various sizes.

The bollard can be mounted onto a variety of surfaces, including concrete, timber, or steel decks, using bolts or welding. The installation process is relatively straightforward and can be carried out by a professional marine contractor.

Overall, the CBT3845-2013 Marine Single Cross Bollard is a practical and essential component of any marine mooring system, providing a safe and reliable way to secure boats and ships while in port or at sea.

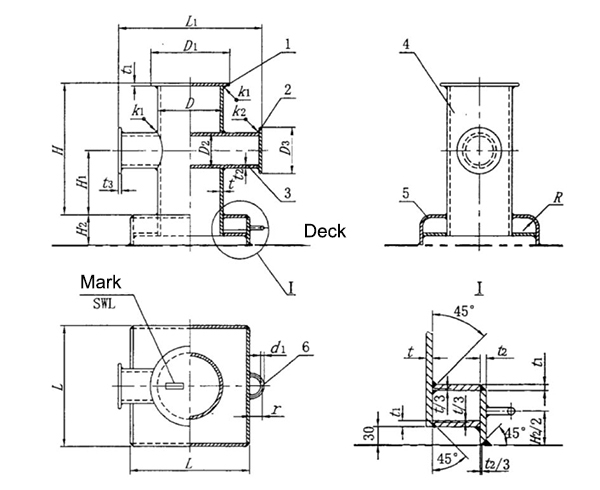

Parameters of CBT3845-2013 Marine Single Cross Bollard:

Form 1-1:

Nominal Dia. (mm)	SWL (KN)	D	t		D1	t1	D2	t2	D3	t3
			Steel Pipe	Steel Plate
100	50	114	-	10	150	10	60	6.3	80	10
125	80	140	10	10	190	10	76	8	95	10
150	100	168	10	10	225	10	89	8	110	10
200	150	219	10	10	265	10	114	10	150	10
250	250	273	12.5	11	325	11	140	10	190	10
300	400	325	16	15	400	15	168	10	225	10
350	500	355	19	16	450	-	16	10	219	10
400	650	406	20	18	480	18	219	10	260	10

Form 1-2:

Nominal Dia. (mm)	H	H1	H2	L	L1	R	r	d1	Welding foot		Weight (kg)
									k1	k2
100	210	105	75	200	240	20	25	10	6	5	19
125	270	135	80	250	300	20	25	10	6	5	31
150	340	170	90	315	360	25	25	10	7	5	47
200	420	210	100	400	460	25	30	12	7	5	78
250	520	260	125	500	580	40	30	12	9	5	134
300	660	330	150	630	725	50	35	16	9	6	267
350	800	360	170	700	850	50	35	16	9	6	360
400	820	410	175	800	950	50	35	16	11	6	503
