Marine Nylon Plug,Socket
Marine Nylon Plug,Socket
Marine Nylon Plug,Socket are made of nylon.They are different from marine brass plug and scoket.In Hi-sea,we will provide customers with best services.And our products obey a strict procedure and standard from different sides.
Technical Parameter :
Protection class:IP56
Adopted standard:DIN89267\DIN89262
Cable outside diameter: Φ14~φ16
Code | Type | Weight |
1142\FS | CTS101-1\2\3\4\5 | 0.2kg |

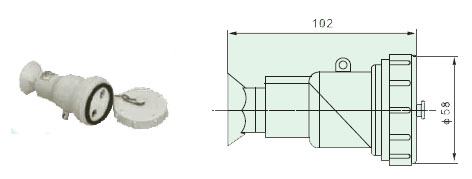

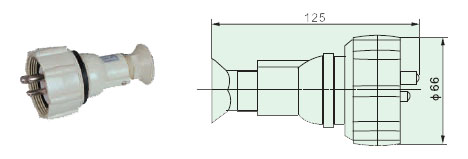

1142\FS Drawing of Marine Nylon Plug
Code | Type | Weight |
1145\FS | CZS102-1\2\3\4\5 | 0.2kg |

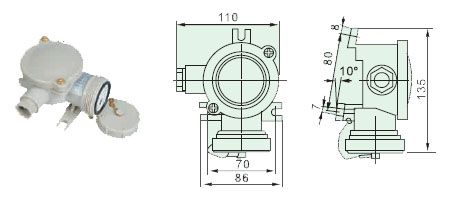

1145\FS Drawing of Marine Nylon Socket
Code | Type | Weight |
1141\FS | CZS101-1\2\3\4\5 | 0.30kg |

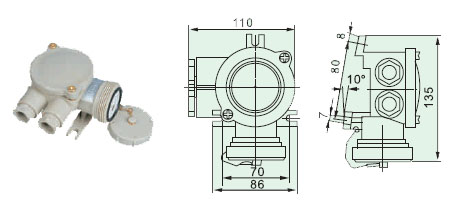

1141\FS Drawing of Marine Nylon Socket
Code | Type | Weight |
1141\R\FS | CZS109-1\2\3\4\5 | 0.30kg |

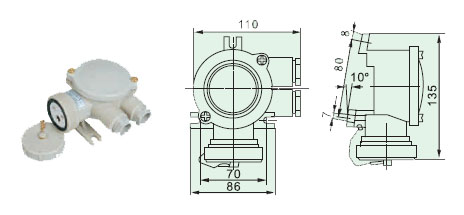

1141\R\FS Drawing of Marine Nylon Socket
Code | Type | Weight |
1141\D\FS | CZS201-1\2\3\4\5 | 0.31kg |

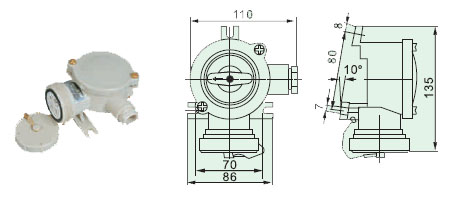

1141\D\FS Drawing of Marine Nylon Socket
Code | Type | Weight |
1141\2\FS | CZS202 -1\2\3\4\5 | 0.31kg |

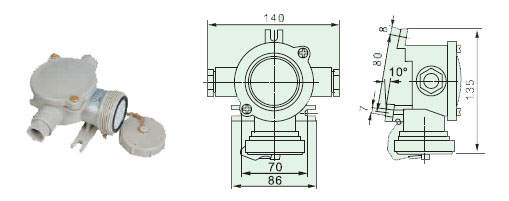

1141\2\FS Drawing of Marine Nylon Socket
Code | Type | Weight |
1141\2\R\FS | CZS209-1\2\3\4\5 | 0.31kg |
