MARINE ELECTRIC CONNECTORS

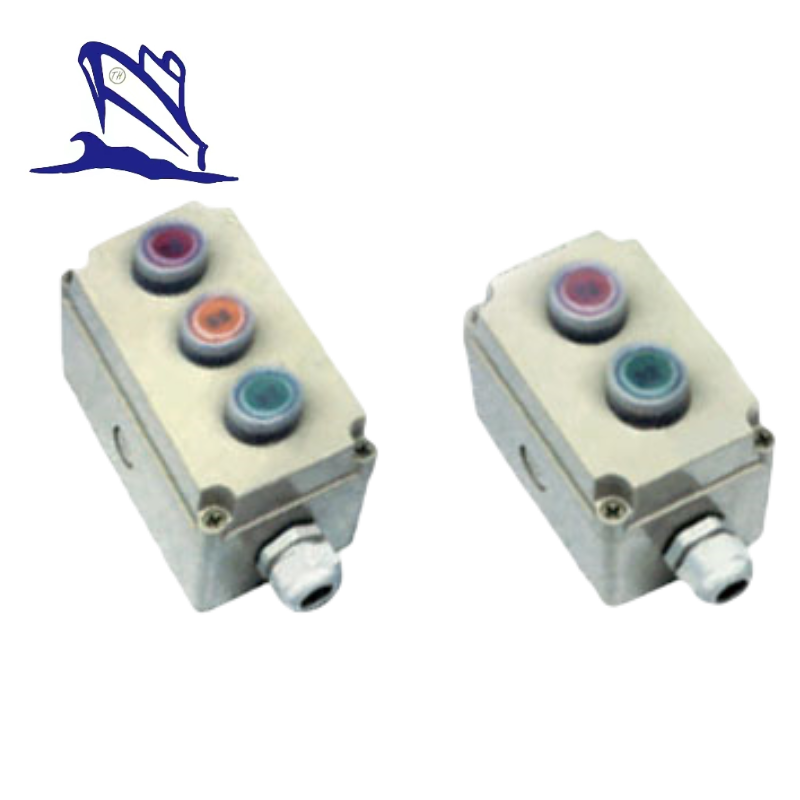

Marine Button Switch

Marine Button Switch

The Current of Marine Button Switch is 10A.There are three kinds of types.The weight is 0.4kg,0.6kg and 0.8kg.The protection is IP65.

Specifications:

Type	Voltage	Current	Protection class	Weight
ZPB-1	220V	10A	IP65	0.4kg

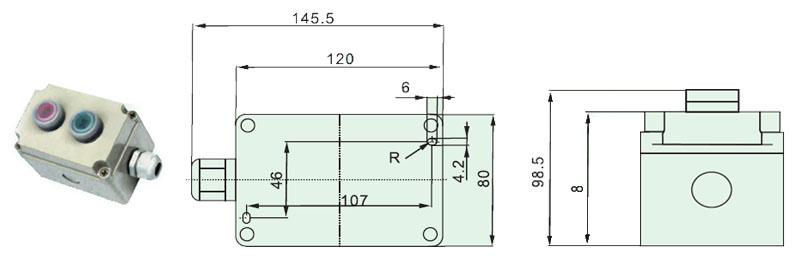

ZPB-1 Drawing of Marine Button Switch

Type	Voltage	Current	Protection class	Weight
ZPB-2	220V	10A	IP65	0.6kg

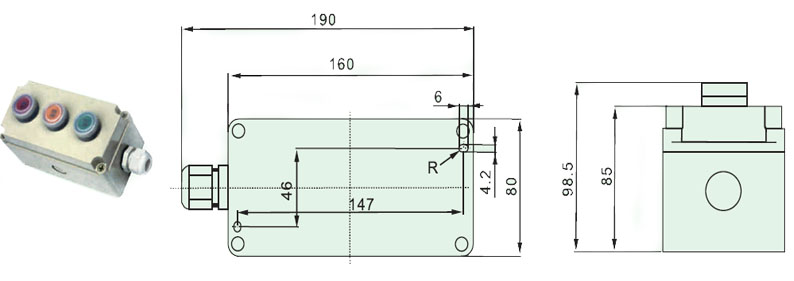

ZPB-2 Drawing of Marine Button Switch

Type	Voltage	Current	Protection class	Weight
ZPB-3	220V	10A	IP65	0.8kg
